Model

PP-20J

Pressure range

0-20.0T

Working process

Programmed pressure relief

Pressure holding time

0-999.59 Sec.

Intensity conversion

Automatic conversion of the die pressure

LCD

4.3”

Safety protection

Steel plate equipped with plexiglass door

Limit switch

Automatic pressure relief at extreme height

Lifting height of cylinder

40mm (T)

Vessel

Φ30×150mm

Isostatic pressure

300MPa

Power

1500W

Voltage

220V, 50/60Hz

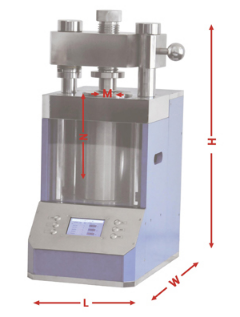

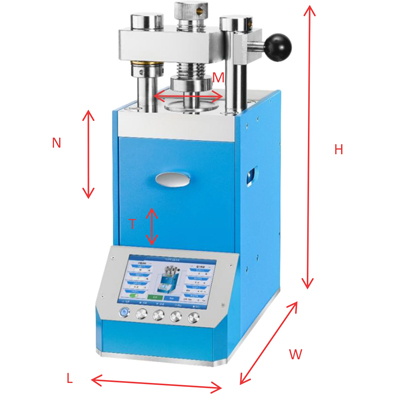

Dimension

240×390×560mm (L×W×H)

Weight

120kg

Diagram of hydraulic press
