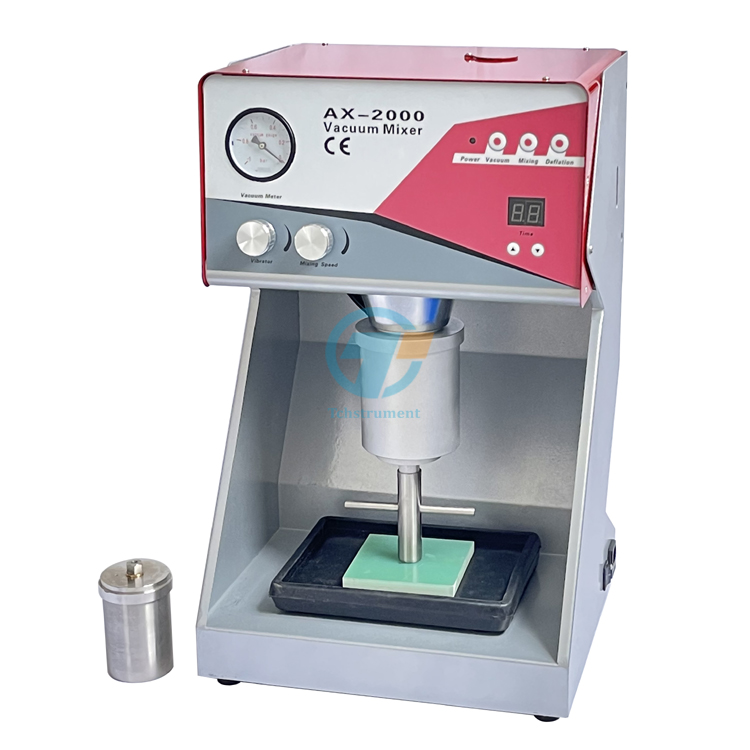

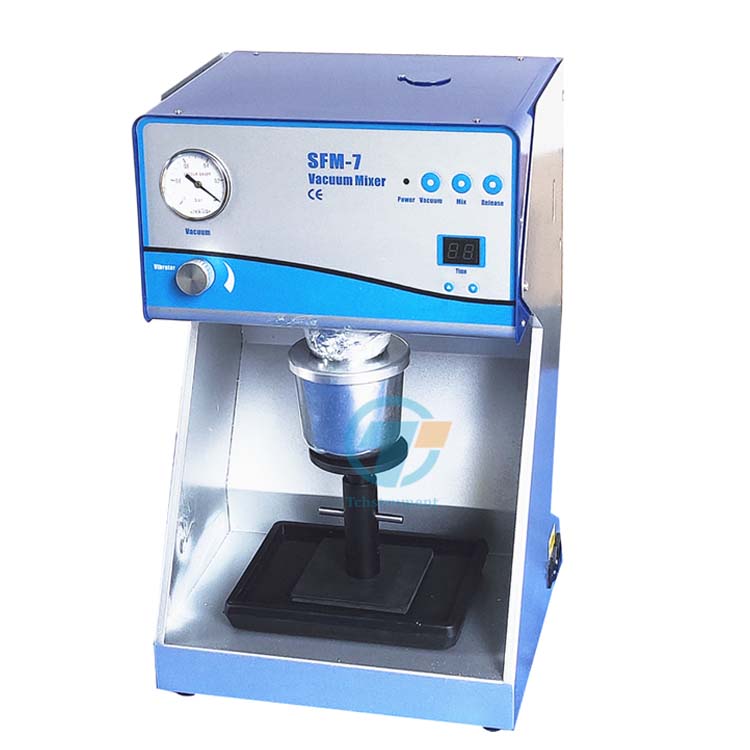

This is designed to produce coating slurry by mixing the small batch of chemical and compound (500 ml Max) under vacuum to remove gas bubble and protect the sample from oxidation. It has a built-in pump which can vacuum the mixing container to -0.08Mpa and the step- less mixing speed @ 320rpm. The vibration plate is located at the bottom to remove the gas bubble before vacuum mixing and disperse the slurry after mixing. It is excellent for preparing battery electrode paste and various ceramic materials in a material research lab.
Specification
|
Voltage Input |
Single Phase 204-240VAC, 50/60 HZ |
|
Power |
150W |
|
Rotary Speed |
320 rpm |
|
|
· Two vacuum sealed containers are included. One 150ml stainless steel and one 500ml aluminum set. · The mixing blade is built-in to the top of the container. · The metal filter prevents solid particles into the vacuum pump · Option 1: 30mL SS container is available at extra cost . · All available containers can be found at Accessories for Slurry & Liquid Mixing |
|
Vacuum pump & Vacuum Level |
· Built in single stage vacuum pump · Vacuum Level: -0.08~0.09 Mpa |
|
Mixing Time |
0~99 Minutes Adjustable |
|
Vibration Plate |
Vibrating at 1000 Hz |
|
Dimensions |
13''L x 12''W x 21''H |
|
Net Weight |
35KG |
|
Shipping Dimensions |
40''L x 25''W x 30''H |
|
Shipping Weight |
46KG |
