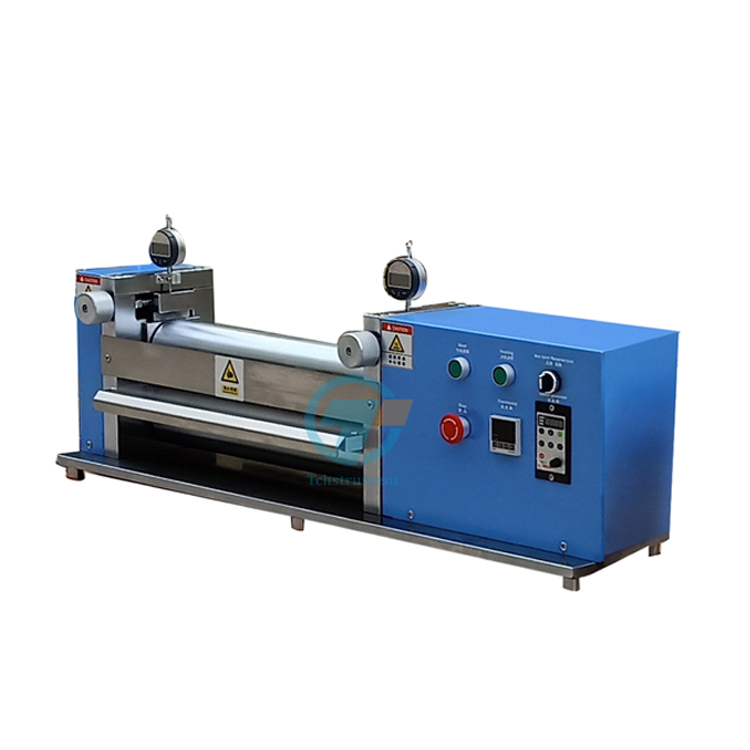

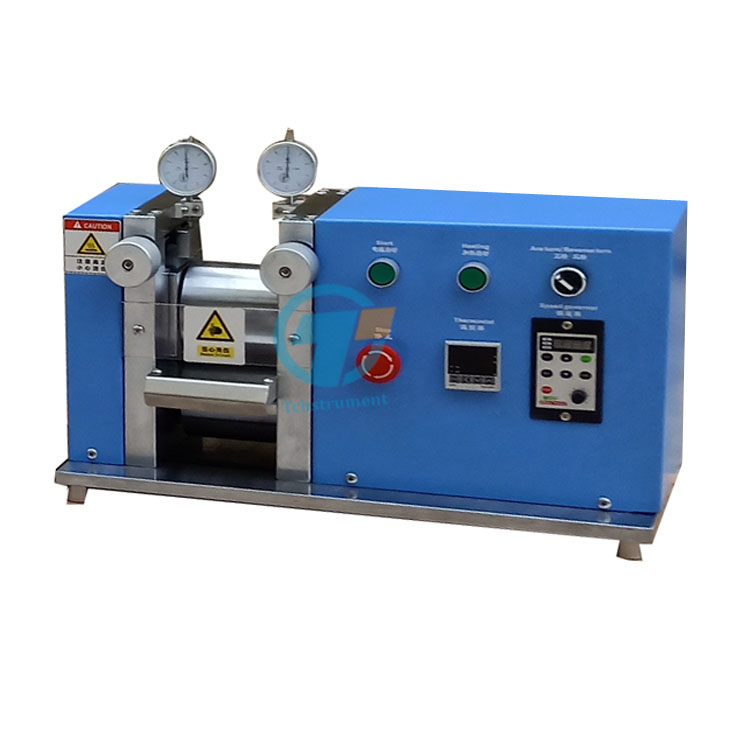

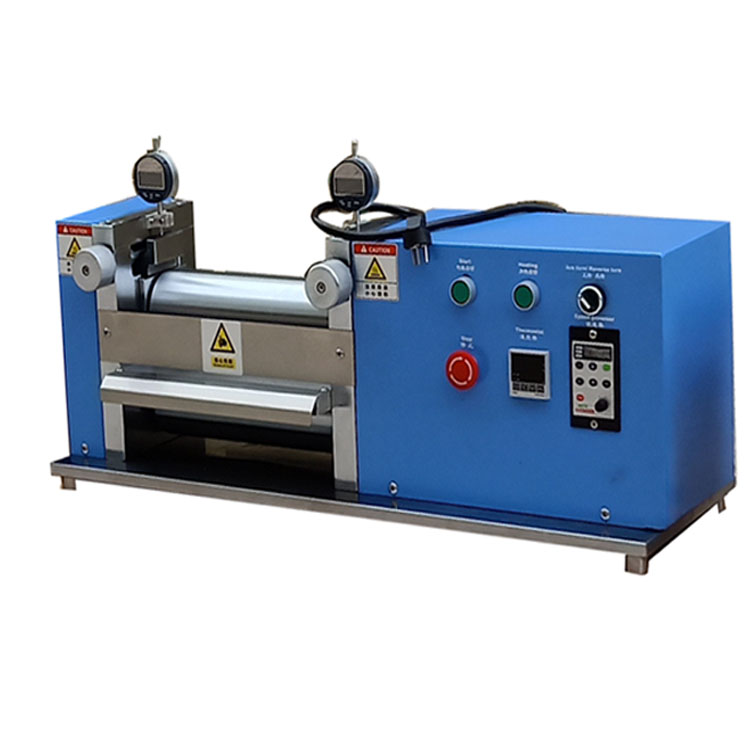

This is compact Hot Rolling Cylinder Press with a max working temperature of 130°C. The tool is designed to increase the active material density of electrodes after coating in Li-ion battery research. It has a pair of 200mm width steel rollers with a heating capacity of 130°C max.
This equipment is driven by a reduction gear motor with a high hardness pressure roller, which adjusts the gap between the pressure rollers mechanically, so that the pole pieces are press-molded and the pole piece density is increased.
Specification
|
Roller Size |
Φ100mm×200mm |
|
Cylinder Width |
200mm Max. (also can be designed according to your need) |
|
Product Thickness |
0-3mm adjustable |
|
rolling speed |
0-8.5m/minute , adjustable ( also can be designed according to your need) |
|
Dial Gauge Accuracy |
0.01mm ( with digital display) |
|
Heating Temperature |
room temperature ~130℃ |
|
Max. pressure |
5T |
|
Voltage |
AC 208 - 240V Single phase, 50/60Hz |
|
Surface Hardness of Rollers |
HRC62 Never roll materials with hardness > 50HRC (bench top rolling press is not suitable for calendering thick metals |
|
Power |
2.4KW |
|
Dimension |
800mm(L) ×320mm(W) × 320mm(H); |
|
Net weight |
110KG |
|
certiifcation |
CE Certified |
|
warranty |
· One year limited warranty with lifetime support · Rusting and damage due to improper storage condition or maintenance are not covered by warranty |
