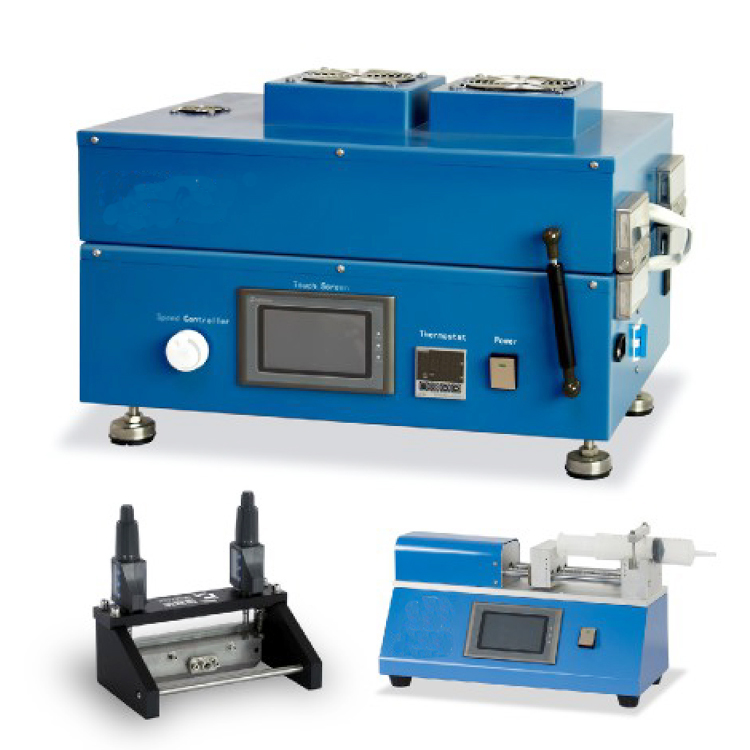

This is a coater designed with flat slot die and syringe pump for slot die coating , also it can work with other type doctor blade for film coating. It is mainly used for film coating of Li battery substrates, solar photovoltaic films and polymer conductive films, film coating for OLED, etc..
Features:
- Extrusion technology is adopted, with high coating precision and good consistency.
- Syringe pump feeding, the feeding system is closed, no interference, less slurry demand and waste;
- vacuum suction plate, built-in vacuum pump:
- Easy disassembly and cleaning of coating mold and feeding system;
- Adopt large and uniform heating to ensure the symmetrical temperature of the main shaft of the cavity;
- Platform coating, motor-driven slot die / doctor blade, the coating speed is stable and stable;
- It can be used inside the glove box, easy to operate, small in size, saving space;
- PLC. Touch screen control, equipment parameter adjustment, storage, and control are convenient and quick.
Main parameters
|
Model |
TCH-FC-S |
|
Coating method |

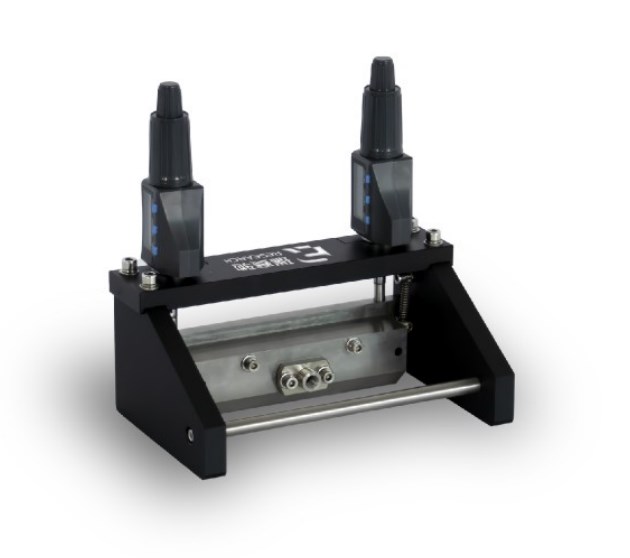

Extrusion flat conformal coating, with flat slot die set included. |
|
Coating stroke |
About 300mm length, and the stroke can be adjusted step-less in the touch screen. |
|
Coating drive |
driven by a motor, coating speed can be set and adjusted steplessly in the touch screen; |
|
Coating speed |
0.5~20mm/S |
|
Vacuum plate |
aluminum flat plate with vacuum suction. Size:L415mmxW200mmxH30mm |
|
coating thickness |
0~5mm adjustable; |
|
Injection volume |
50ml Max. |
|
Feeding speed |
0.05-5mm/s ( syringe piston feeding speed) |
|
Accuracy |
±3pm, optional dial indicator with 1um display |
|
Heating and drying temp. |
room temperature ~ 130℃, digital display temperature controller with accuracy 1℃; |
|
Vacuum pump |
Built in oil-free vacuum pump |
|
Coating part dimension |
L560mmxW420mmxH370mm |
|
Voltage |
110V / 220V |
|
Power |
2 KW Max. |
|
Warranty |
1 year |
