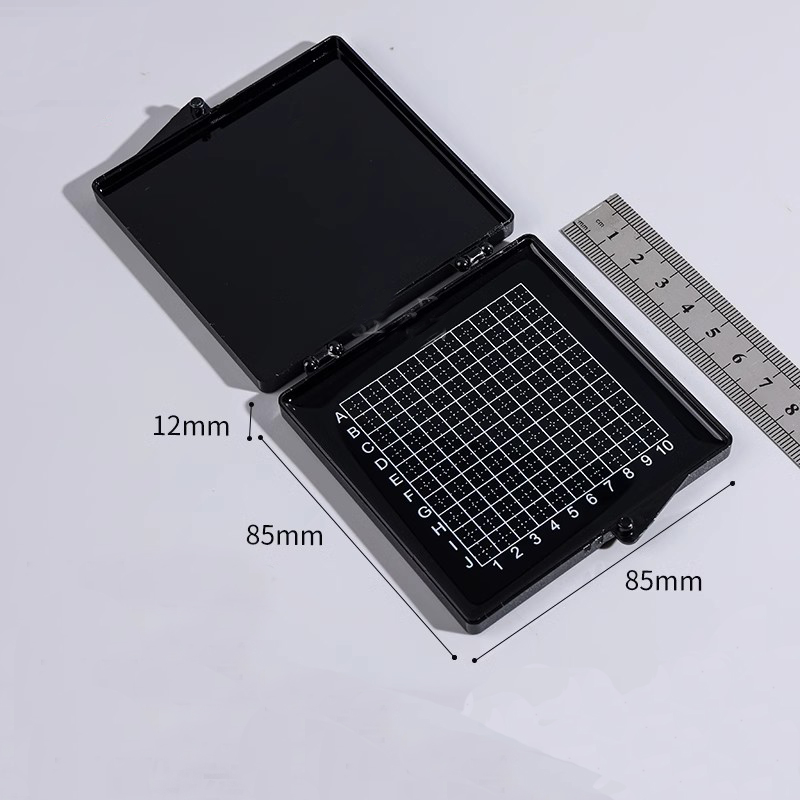

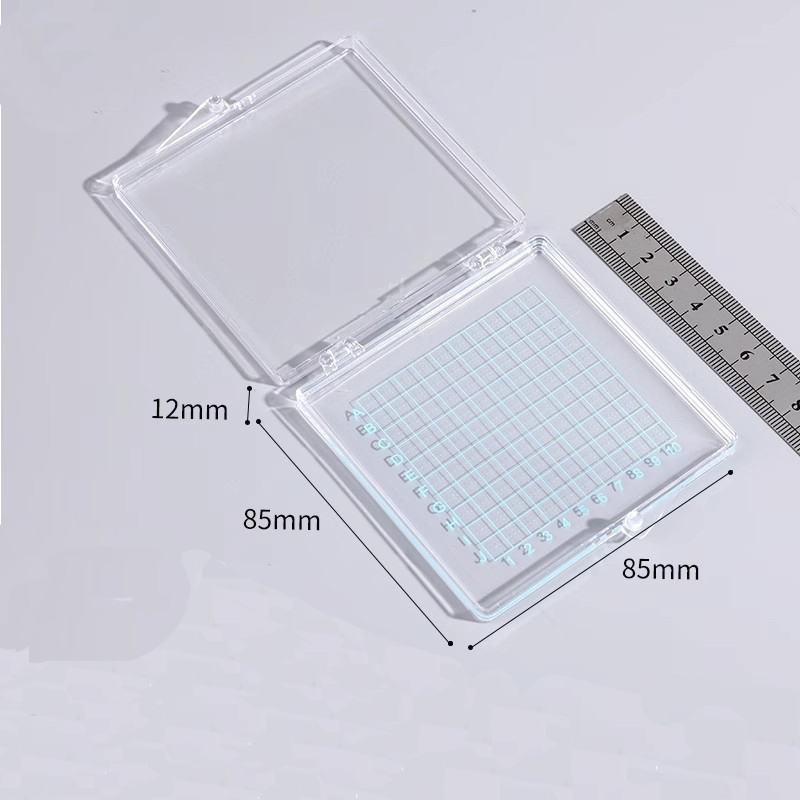

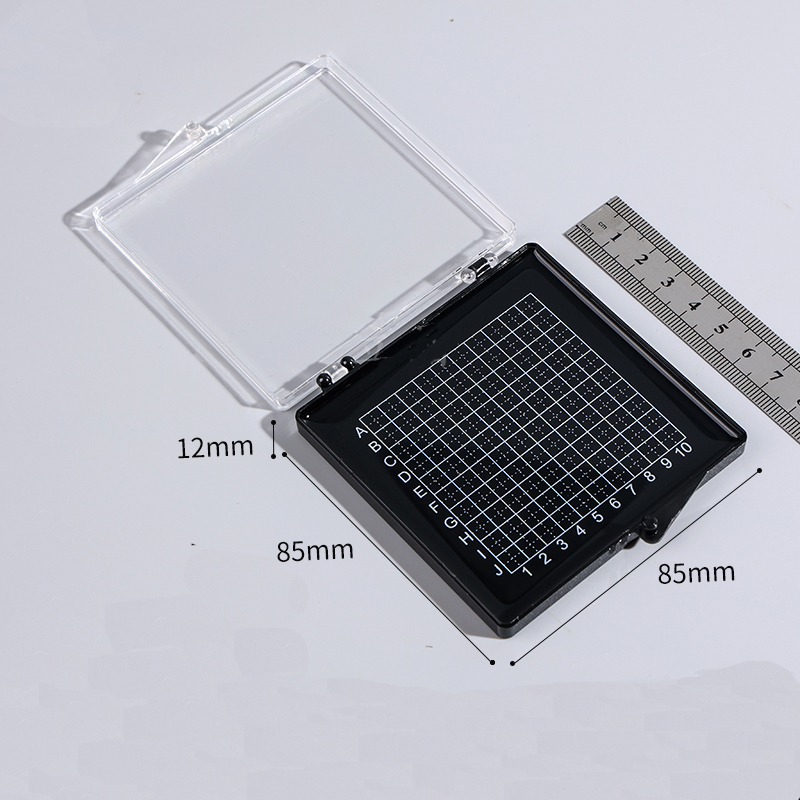

The sticky carrier is designed to protect delicate components or device during transport, processing, inspection, and assembly. Sticky carrier contains a gel layer in the bottom of carrier. Components or devices are held on surface layer once they contact gel layer, and will stay in place, even the carrier is tilted or jarred. The components or devices can be taken off by tweezers or hands easily.
Specifications:
|
Outside Dimension |
85 x 85 x 12 (mm3) (3.35"x3.35"x0.47") |
|
Inside Dimension |
81 x 81 x 8.5 (mm3) |
|
Retention Level |
Low /Medium/High |
|
Printed Grid Area |
6 mm x 6 mm (100 Grid) |
|
Material |
Polycarbonate/ Acrylonitrile Butadiene Styrene |
|
Color of Cover/ Background |
Black / Black Transparent Cover /Black Transparent Cover /Transparent |
