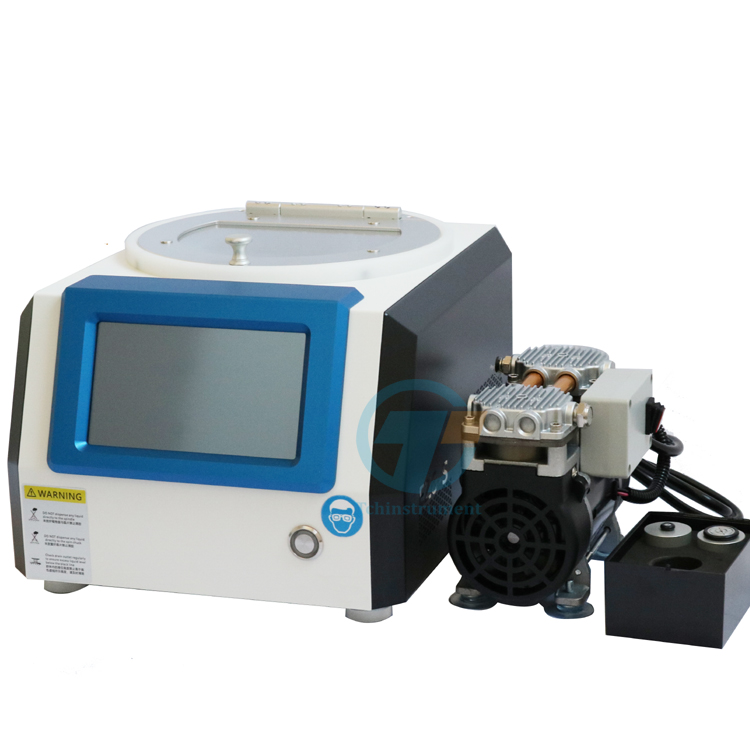

The TCH-EZ6 EasyCoater 6 is a compact programmable spin coater. It can store up to 10 spin programs and each program has up to 10 steps. All relevant run parameters including spin speed, acceleration, spin time, and auto dispense can easily be set with the touchscreen.
Specification:
|
Model |
TCH-EZ6 |
|
Max Spin Speed |
12,000 RPM |
|
Spin Speed Resolution |
1RPM |
|
Max Spin Time |
3,000 seconds |
|
Spin Time Resolution |
0.1 seconds |
|
Max Acceleration |
30,000 RPM/S |
|
Dimensions |
10” H x 10” W x 14” D |
|
Weight |
25 Lbs |
|
Power Input |
120VAC, 1 Phase, 500VA (110V Model) 230VAC, 1 Phase, 500VA (220V Model) |
|
Vacuum Input (required) |
18” to 25” Hg, at least 0.5 CFM flow rate |
|
Vacuum Port |
3/16” OD outlet at the rear of the machine |
|
Drain Port |
5/8” OD outlet at the rear of the machine |
|
Warranty |
1 year |
Packing List:
