200℃ Max. Electric Hot Rolling Press

  • Width 1:0~200mm
  • Width 2:0~300mm
  • Width 3:0-400mm
BASIC INFO

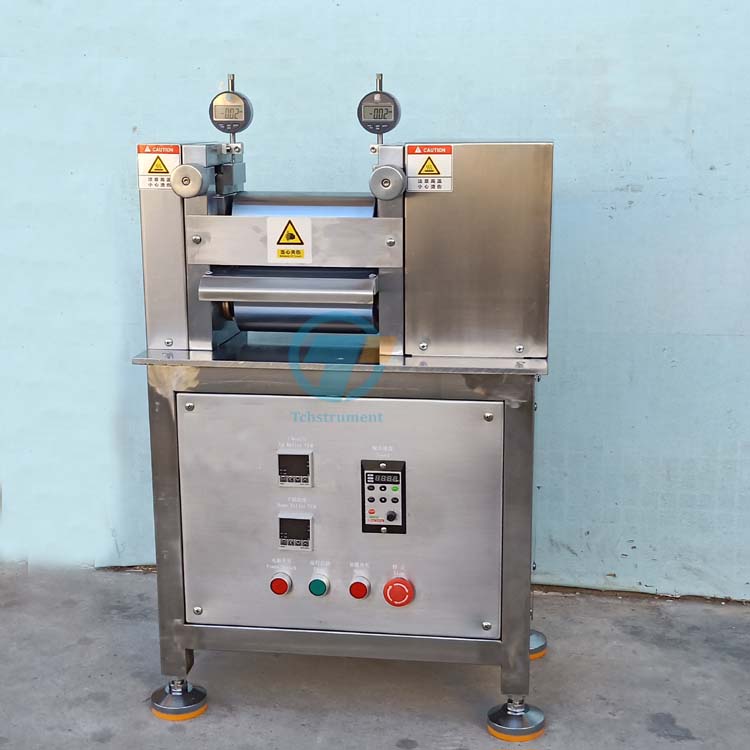

This is a hot  rolling press with maximum working temperature up to 200°C. The temperature of two 8'' wide rollers is individually controlled by two PID temperature controllers to achieve better heating uniformity and control accuracy. The compression pressure force can be measured by the integrated load cell and displayed on the control box during the process. It is an ideal tool for calendering battery electrodes, plastic media, and soft metal foils. Typical usage is to increase material density and achieve better surface quality.

Specification

Model

TCH-MSK-HRP-04B

Roller temperature

Room temperature~200°C

Roller size

Φ100mm Dia. x 200mm width

(also can design the width according to your need)

Roller surface hardness

HRC62

Roller cylindricity

≤ ± 2μm

Roller material

imported 9CR2MO steel

Rolling press thickness

0-3mm adjusted with Dial gauge

Rolling width

200mm Max.

Roller surface finish

0.8

Roller surface hardening depth

5mm

Max. pressure

3T

Rolling speed

stepless speed, 0-4m/min adjustable

Voltage

204-240V

Power

3 KW

Net weight

About 105KG

Warranty

1 year
