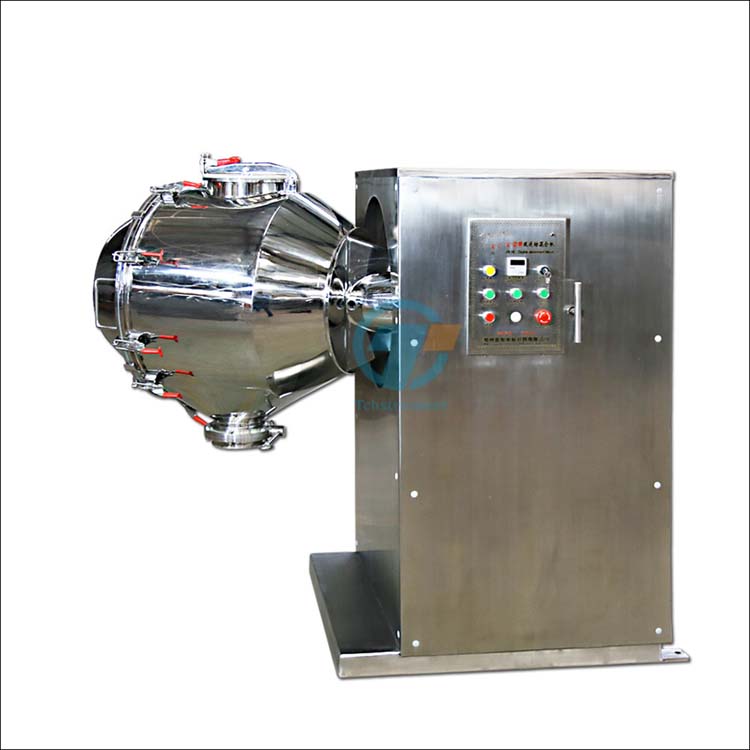

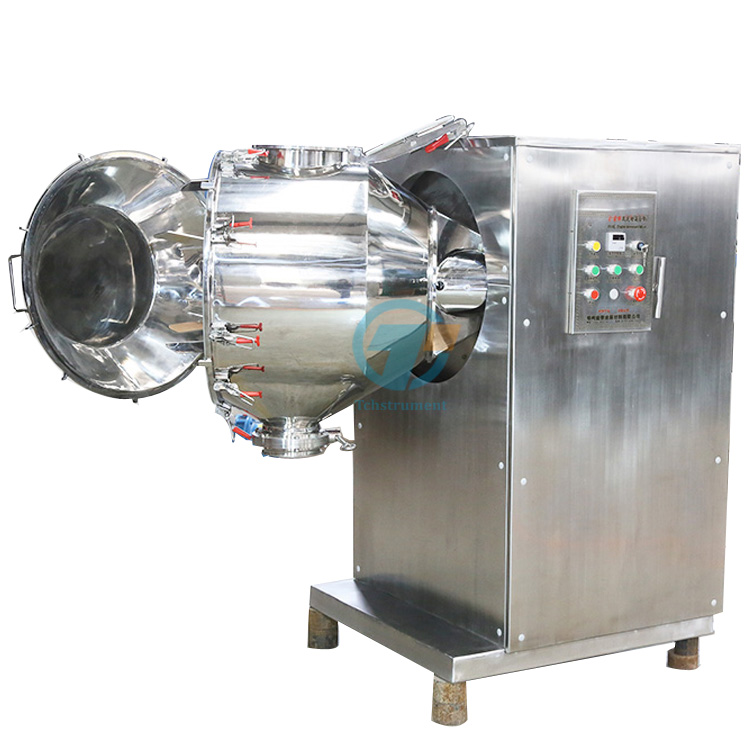

This is a new generation powder mixer with higher efficiency and better uniformity ever. The mixer creates double motion in the mixing tank and the antler shape blade, which ensures solid powder randomly stirring without a dead corner. Compared with conventional powder mixer, its efficiency will increase by more than 50% at much lower cost.
Features:
- Dual motion via tank and blade to create better uniform mixing than ever
- The antler shape blade creates the multi-layer shear force to mix materials with different densities together
- Ideal for mixing dry metallic powder and polymer powder
Specification
|
Model |
TCH-50L |
TCH-100L |
TCH-200L |
|
Mixing Tank |
50L |
100L |
200L |
|
Max. Loading Capacity |
37.5L |
75L |
150L |
|
Tank rotational speed |
0~25RPM |
0~23RPM |
0~21RPM |
|
Blade rotational speed |
0~50RPM |
0~46RPM |
0~42RPM |
|
Power |
1.1Kw |
1.1Kw |
2.2Kw |
|
Dimension |
1400x620x1000mm |
1450x720x1200mm |
1550x860x1580mm |
|
Weight |
430Kg |
500Kg |
500Kg |
|
Timer |
0- 999 Mins by a digital timer |
||
|
Voltage |
208~240VAC, 50/60Hz |
||
|
Warranty |
1 year |
||
