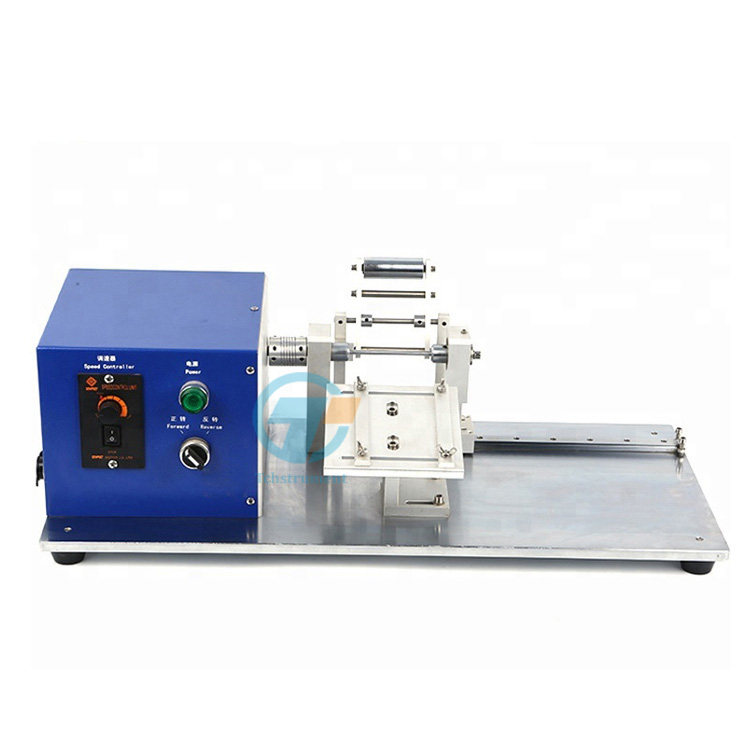

Semi-automatic winder for winding electrodes with separator together in the research of Li-ion cylinder batteries
Features :

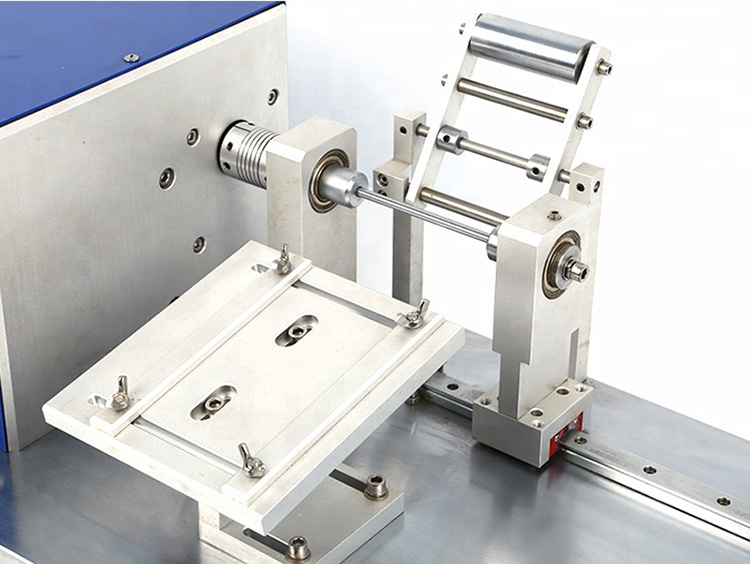

1. Feeding electrode channel can be regulated from up to down, left to right, front to back.
2. Winding support wheel ensures the winding tightness of battery core.
3. End winding supporter increases the winding accuracy of battery core.
4. Froward & reverse is optional ,the speed can change steplessly.
5. Small dimension, nice appearance, simple operation.
Specification:
|
Model |
TCH-MWM |
|
Working Voltage |
AC110V/220V, 50/60HZ |
|
Power |
40W |
|
Warranty |
One Year limited warranty with lifetime support |
|
Winding Speed |
0-170 RPM Adjustable |
|
Winding Shaft |
Dimensions: 4mm(OD) x 65mm(L) for 18650 cylinder battery core, Other sizes like 26650 and 32650 are available upon request |
|
Winding Mode |
Switchable between clockwise and counterclockwise |
|
Output |
70-100EA/h, according to battery size and maunal |
|
Product Dimensions (L*W*H) |
360*310*280mm |
|
Net weight |
About 20kg |
|
Application Notes |
This machine can be used for cylinder battery with round winding shaft, and you can also choose the square winding shaft for pouch cell core winding, We will supply with the suitable winding accessories according to your battery model |
