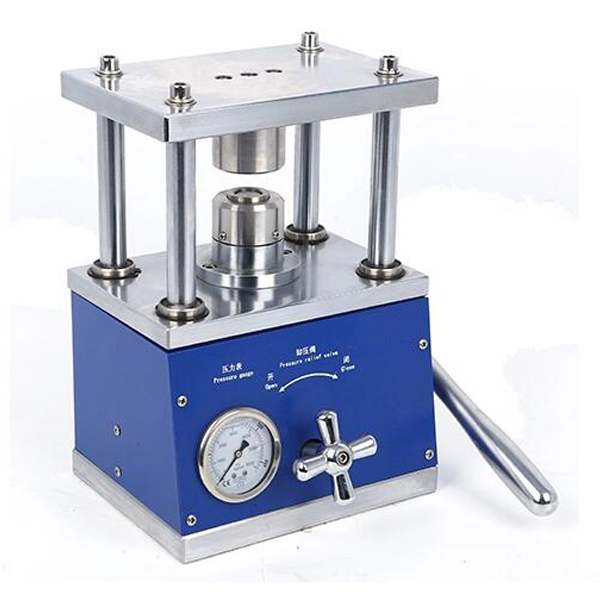

Features

· Heavy duty steel frame

Crimping Die

· One set of crimping die for CR2032, CR2025, and CR2016

· Die is consumable,  please contact us to order replacement

· 100 pcs Coin cell cases are included in the package for testing and immediate use

· Optional die available from product option for crimping CR2325, CR2450, AG3, AG5

· Note: we do NOT carry AG5 cell cases.

Pressure

· Max. 8 metric Tons hydraulic pump with automatic pressure relief

· Max.200 Kg/cm2 on CR20XX series coin cell

· Effective piston area: 11.34 cm^2

Product  Weight & Dimensions

· With handle positioned horizontally: 280mm(L) x 280mm(W)  x 333mm(H)

· Without handle: 228mm(L) x 176.8mm(W) x 333mm(H)

· Tray: 330mm(L) x 230mm(W) (See section Maintenance & Equipment Care below for more)

· Net Weight:   26 kg (58 lbs)

· Shipping weight & Size:   45 kg (100 lbs)  40" x 30" x 21"

Compliance

CE Certified

Warranty

One Year limited warranty with lifetime support (Rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty)
