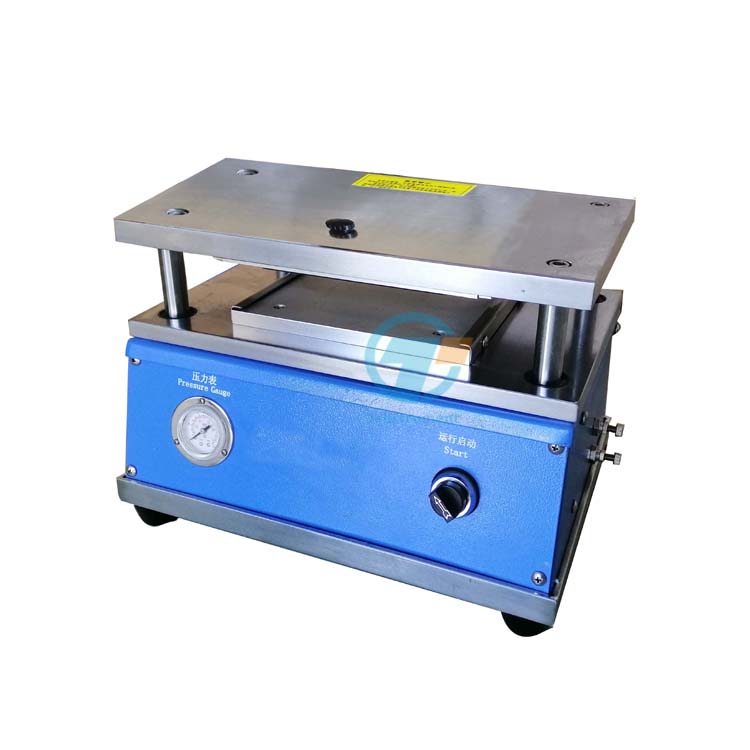

Die Set Dimensions





        · Two standard electrodes (Cathode & Anode) cutting dies are included for immediate use.

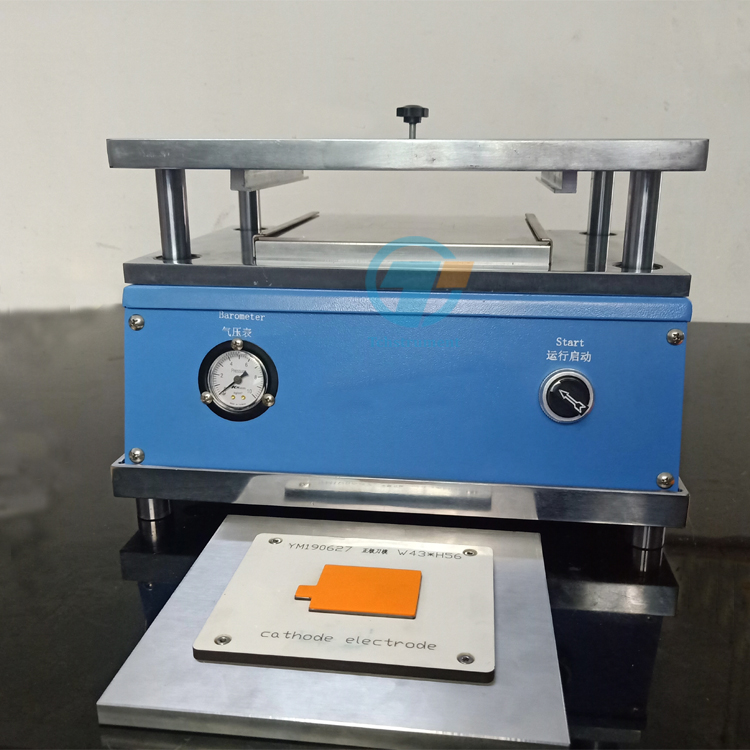

        o Cathode Die: 56mm (L) x 43mm (W). With 10mm (L) x 10mm (W) protrude current collector.

        o Anode Die: 58mm (L) x 45mm (W). With 10mm (L) x 10mm (W) protrude current collector

        · Customized dies with is available at extra cost.

Plate Pad

        ·   Use the plate pad to hold the electrode and minimize permanent markings on the base.

        ·   Warning: please don't use other material to replace the pad

Cutting Depth

    Max. 0.5mm (tested with aluminum laminated film)

Cutting Accuracy

±0.1mm

Cutting Pressure Force

Max. 1T (recommended pressure force for cutting battery electrodes is 0.5T)

Glove Box Compatibility

        · KF40 Feedthrough with all necessary wire and tube are included to allow operating inside the Glove box, which has a KF40 port

        · Please use Inert gas when operating in the glove box.

         · One KF-40 Clamp with rubber O-ring is included

Gas Pressure

         · 0.5~1.0Mpa (0.7Mpa is recommended)

         o For the use of inside the glove box, please use compressed inert gas such as Ar.

        o For the use of outside the glove box, you may use the air compressor, 60 psi recommended.

       · Compressor is not included, please click the image on the left to order

        · Attention: If a gas cylinder is used instead of air compressor, a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.

Feeding

Manually

Stroke Length

12mm

Cutting Die Life Span

~30000 strokes

Warranty

One Year limited warranty with lifetime support
