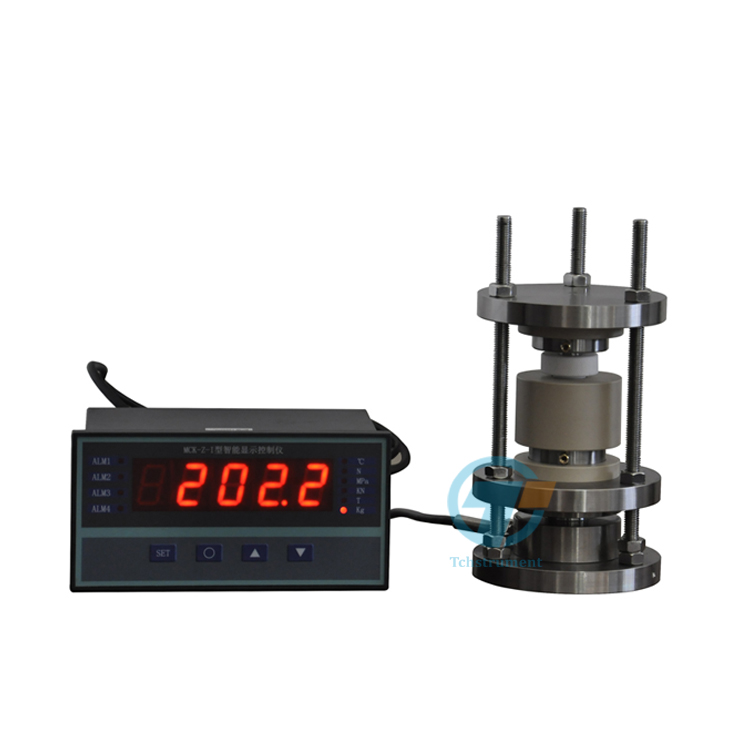

This is a split-able coin cell set with a sleeve made out of Nylon or PEEK. The split cell placed in a frame with pressure displayer, which is designed for researching the effect of pressure on solid-state battery performance. It can also be used for easy coin cell assembling without any screw and crimping tool. It can be customized into various sizes to accept all sizes of electrodes and separators.
Specification:
|
Model |
PMN-PK |
|
Sample shape |
|
|
Pressure |
0 - 5000kg |
|
Shelf material |
SUS 304 |
|
Mold material |
PEEK |
|
Rod material |
3Cr13 |
|
Sample size |
Φ10 /Φ12/Φ12.7/Φ13/Φ20mm etc. (d) |
|
Mold dimension |
Φ50*90mm (M*L) |
|
Shelf dimension |
Φ100*220mm(D*H) |
|
Weight |
10-15Kg |
|
Diagram of hydraulic powder press size |
|
