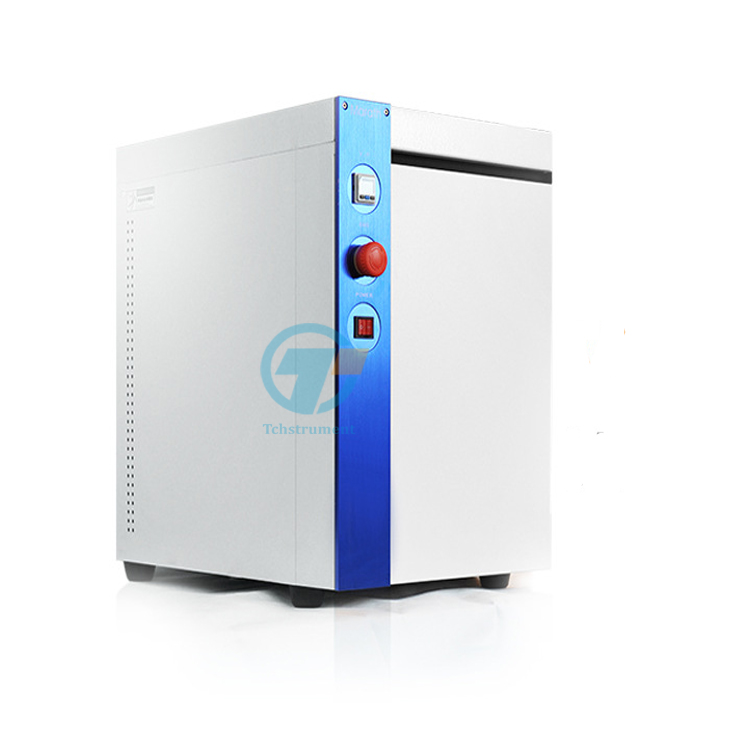

This planetary centrifugal vacuum mixer is designed for mixing and deaerating various kinds of paste, liquid, slurry, and powder materials. It could be used for mixing and homogenizing nanopowders, nanotubes, ceramics powders, battery powder/slurry, metal powders, and especially high viscosity slurry/paste, etc. The vacuum mixing capability is integrated for best mixing results. The standard package includes two 300 mL containers and counter-weights.
Specification
|
Features
|
· the planetary centrifugal mixer has the following unique features: o Mixing under vacuum for deaeration o Dual containers for larger quantity o Minimized contamination (no metal mixing blade) · Sample Materials o Nanopowders, ceramic powders o Grease o Slurry o Paste |
||||||||||||||||||||
|
Voltage Input |
· Single Phase AC 208 - 240V, 50/60 Hz |
||||||||||||||||||||
|
Power |
· Maximum: 2000 W · Motor Power: 750 W |
||||||||||||||||||||
|
Mixing |
· Planetary Centrifugal Vacuum Mixing o The centrifugal force of rotation and revolution induces convection, homogenizing the materials o With the vacuum pressure, submicron air bubbles can be efficiently eliminated from the materials |
||||||||||||||||||||
|
Vacuum Capability |
· Pumping Rate: 165 L/min · Ultimate Vacuum: -95 kPa · Built-in vacuum pump with integrated control |
||||||||||||||||||||
|
Speed |
· Fixed speed ratio ( 0.6X between main plate revolution and container rotating ) o Sample Platen Rotation (revolution motion):600 rpm - 2,000 rpm (adjustable) o Container Spin (rotation motion):360 rpm - 1,200 RPM (fixed at 0.6X of the revolution speed) |
||||||||||||||||||||
|
Containers and Counter-Weights |

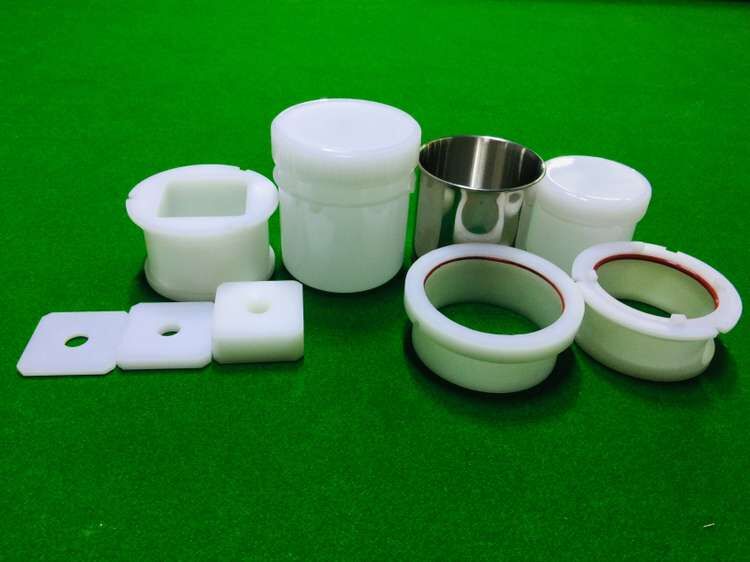

· Two standard containers and counter-weights are included o Two 300 mL containers with gas vent, made of high-density Polyethylene o Counter-weights (10, 20, 50 g) with adapter, made of high-density Polyethylene For ball milling application, please choose stainless steel liner, which will reduce jar compacity to 200 ml |
||||||||||||||||||||
|
Optional |
· Optional containers, which can be ordered at extra cost: o Two 100 mL containers (not included) with adapter and gas vent, made of high-density Polyethylene o Two 30 mL containers (not included) with adapter and gas vent, made of high-density Polyethylene o 26 mm Dia. adapter for 30 mL syringe (not included), made of high-density Polyethylene o You may order stainless steel container for ball milling application |
||||||||||||||||||||
|
Max. Mixing Volume and Weight |
Container
Max Sample Volume
Max Sample Weight
Max Gross Weight (Container Included)
300 mL
150 mL
140 g
300 g
100 mL
50 mL
45 g
80 g (adapter not included)
80 mL(SS)
60 mL
90 g
300 g (adapter included)
30 mL
15 mL
12 g
20 g (adapter not included)
Attention: Sample overload might damage the motor and/or cause spilling. Follow both the volume and weight limit when loading the |
||||||||||||||||||||
|
Program |
· Store up to 6 programs in memory · 3 programmable segments o 800 rpm revolution speed (480 rpm rotation speed) for 60 sec; o 1500 rpm revolution speed (900 rpm rotation speed) for 180 sec; o 1000 rpm revolution speed (600 rpm rotation speed) for 60 sec. · Maximum running time for each segment is 200 sec. Maximum total running time is 600 sec · The rotation direction could be either clockwise (mode A) or counter-clockwise (mode B) |
||||||||||||||||||||
|
Safety and Protection |
· Safety warning and interlocks are integrated. The unit automatically stops when o The unit is overloaded with the sample o The sample is loaded in an unbalanced way o The top cover is opened |
||||||||||||||||||||
|
Warranty |
One year limited standard warranty with lifetime technical support |
||||||||||||||||||||
|
Dimension |
400 mm (W) x 590 mm (H) x 580 mm (D) |
||||||||||||||||||||
|
Weight |
91 kg |
