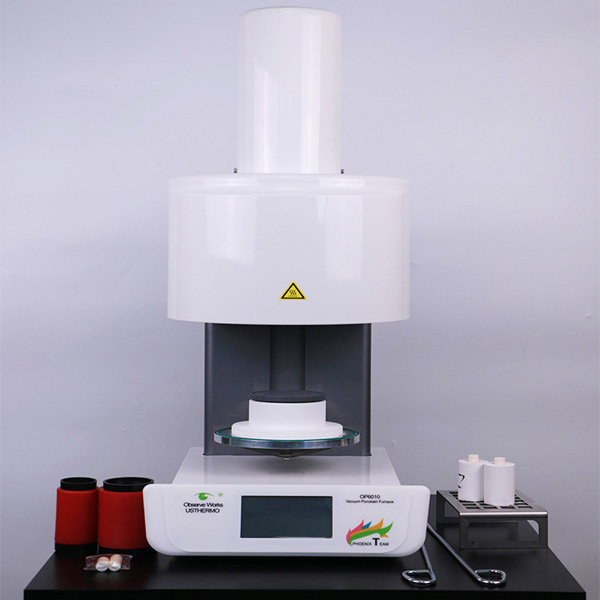

The dental press furnace is a premium combination furnace of the latest generation of the Programat series and may be used as both a press and a ceramic furnace. This highly innovative, efficient and user-friendly furnace model optimally combines sophisticated design and advanced technology.
The features:
- High quality of the function of temperature adjustment automatically,ensure the actually temperature error within +/-1.
- Easy to operate,compact size,the smallest size in the world at present.
- Precision stepper motor drive, the smooth and jitter-free functioning, noise-free,Speed programmable.
- Spiral quartz chamber of furnace
- Temperature adjustment automatically before every firing procedure.
- True color touch screen, the operation is simple and convenient.
- USB port can easily connect to the computer service program.
- Built in 99 program.
- Optical status display.
Specification:
OPERATION:
The velocity of temperature increasing: 200℃/min max. (392°F /minute)
The max temperature: : 1200℃ max (2283°F)
The time which can be kept at the max temperature: 2 H
Vacuum level:1-101%
ELECTRIC POWER:
Operation range:100-120V 50/60HZ , 230V 50/60HZ
Electric current:14.5ampere@110V 7.0ampere@230V
Power:max 1500W
WXDXH :width 27cm Depth 36cm Height 70cm
Usable measure (firing chamber)::9cm(3.5”)
Net weight:23Kg
Weight include the package:26.5Kg
AMBIENT CONDITIONS
Indoor use
Ambient temperature: 2°C to 40°C
Relative humidity 80% at 31°C
Maximum altitude: 1500 m (Special Model:3500m)
Rated voltage fluctuations must not exceed plus/minus 10% of the rated
voltage
Standard packing list:
1PHOENIX furnace.pressed.
1 firing pan
1 connection cable for the mains power supply
1 furnace tweezers
1 Tongs
2 Press rod
1 Embedding ring
