Fixture function:
This series of fixtures are mainly used to test and verify the electrochemical performance of small pouch cells under different specific pressure environments.
Specification:
|
Mode |

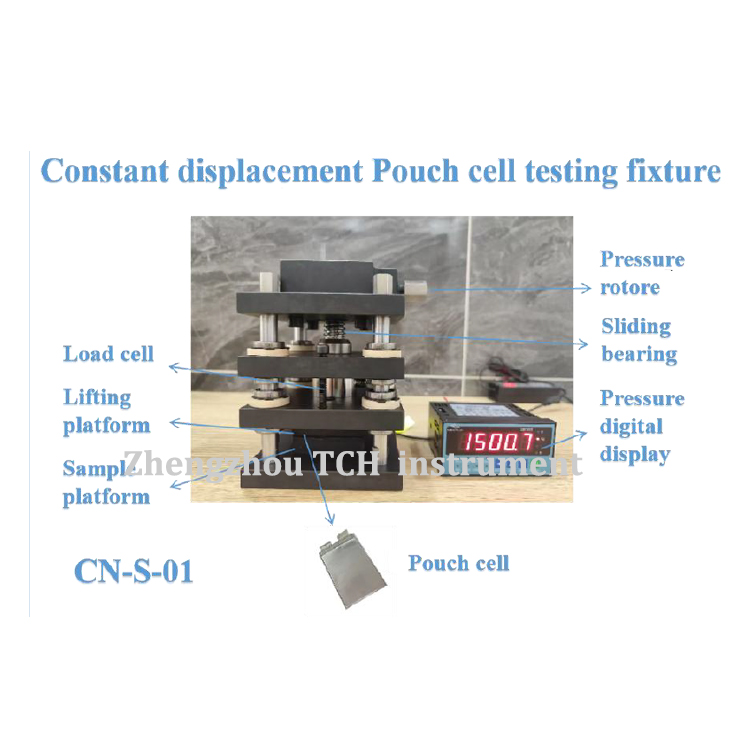

CN-S-01 |
CN-S-02 |
|
Type |

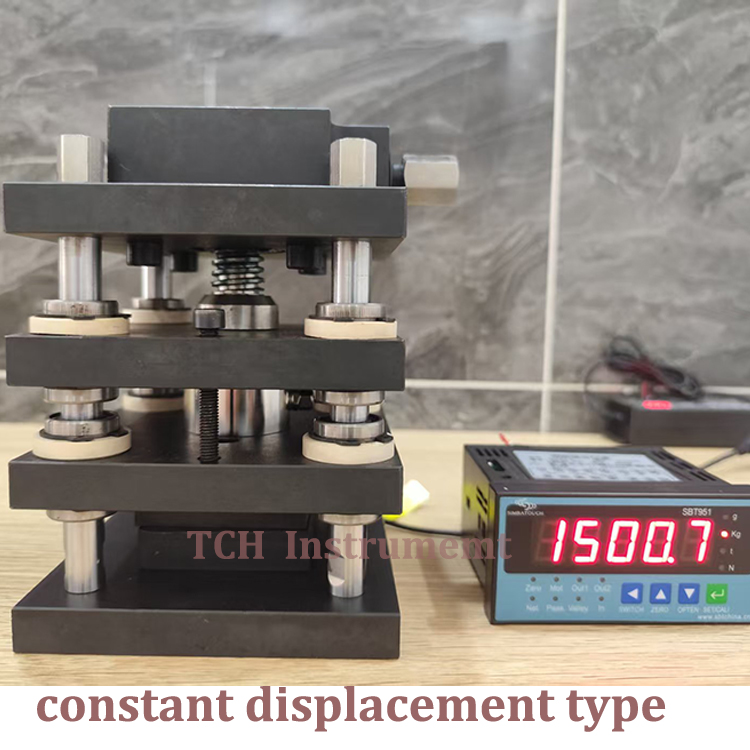

constant displacement type |

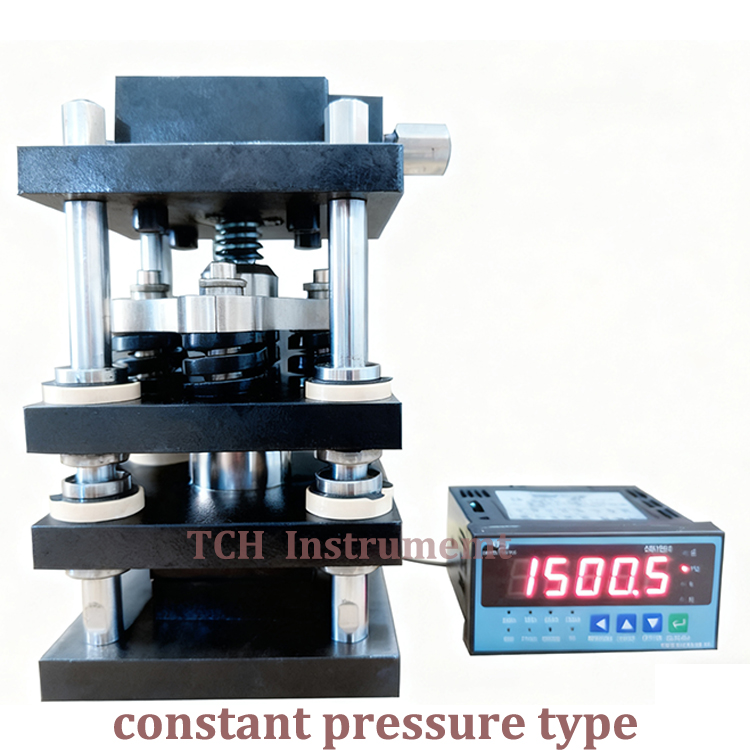

constant pressure type |
|
Fixture size (L*W*H) |
120 * 120 * 170mm |
120 * 120 * 200mm |
|
Pressure sensor range |
0.2-2T optional ( also can design according to your need, we can make 50T Max.) |
|
|
sensor accuracy |
0.1%-0.3% (0.2-2T) |
|
|
Communication system |
can be connected to the upper computer, and the supporting software can detect and record the corresponding pressure values in real time. |
|
|
Net Weight |
9.5KG |
10.5KG |
Attentions
1. When using fixtures, it is necessary to comply with the maximum working pressure limit. Exceeding the working pressure limit can cause damage to the fixtures.
2. Before and after using the fixtures, the surfaces of the sample table and lifting table should be cleaned to prevent foreign object contamination.
