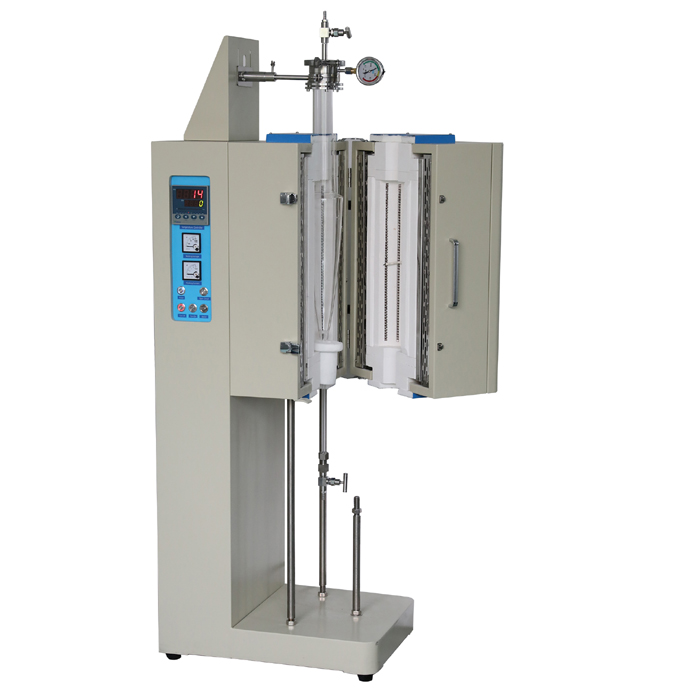

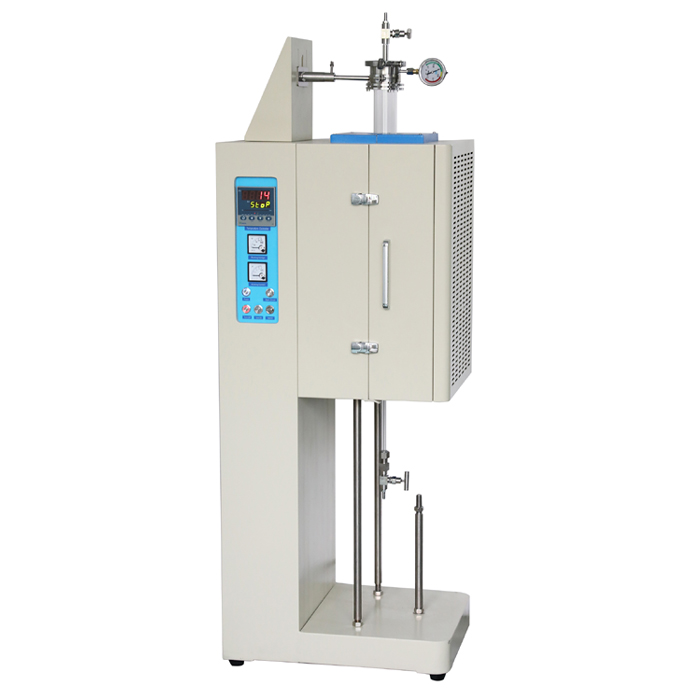

This is a bed vertical fluidized-bed furnace,which consists of a vertical positioned cylindrical heating chamber that surrounds the quartz tube with a built-in filter right in the heating zone. Its filter is a porous quartz frit that allows the controlled gas flow passes through and floats the particles on a cushion of the gas stream where the interaction between the solid and gaseous materials takes place.
Specification:
|
Model |
TCH-VTL1200-FBF |
|
Power |
3.5 KW |
|
Tube size |
Dia 60(OD) X1000 mm Middle area（Dia100X320）
|
|
Voltage |
220V, 50 /60HZ , single phase |
|
Heating element |
Resistance wire |
|
Temp control |
l 30 programmable segments for precise control of heating rate, cooling rate, and dwell time. l Built-in PID Auto-Tune function with overheating & broken thermocouple protection. l Over-temperature protection and alarm allow for operation without attendant(s). l +/- 1 ºC temperature accuracy. |
|
Fluidized Zone |
1. The reaction gas evenly passes through the reaction area through the porous quartz fritz, and reaches the mouth of the bulging belly to form a reflux vortex. 2. The solid particles are suspended in the belly area by the injected gas 3. The furnace body is designed with an open type. When the experiment is over, the furnace body can be opened to take out the quartz tube. The flange is a ferrule type, and the flange ferrule is opened to take out the reacted particles. Adjustment of the intake gas: When the gas is introduced to suspend the sample particles, the particles may pass through the heating area due to the excessive gas flow, so the gas flow should be adjusted according to the size of the particles during the experiment. |
|
Quartz Frit |
1、 Frit ：about 10um 2、size：φ35mm x 5mm |
|
SCR |
106/16E |
|
Max. Temp. |
1200 ℃ |
|
Working temp. |
≤ 1100 ℃ |
|
Heating rate |
≤30 ℃/ Min （suggest ≤15 ℃/ Min） |
|
Thermocouple |
K type |
|
Heating length |
440mm |
|
Vacuum system |
optional |
|
Surface temp. |
≤45℃ |
|
Warranty |
One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty) |
|
Warning |
Tube furnaces with quartz tube is designed for using under low positive pressure < 0.2 bars / 3 psi / 0.02 Mpa Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Vacuum limit definition for all quartz tube furnaces: * Vacuum pressures may only be safely used up to 1000°C |
