Parameters:
Model |
PCD-100J |
Pressure range |
0-100.0T |
Piston diameter |
Φ200mm (d) |
Working process |
Programmed pressure relief |
Pressure holding time |
0-999.59 Sec. |
Intensity conversion |
Automatic conversion of the die pressure |
LCD |
4.3” |
Safety protection |
Steel plate equipped with plexiglass door |
Lifting height of cylinder |
50mm (T) |
Spatial size |
260×400mm (M×N) |
Vessel |
Φ60×150mm |
Intracavity pressure |
300MPa |
Voltage |
220V, 50/60Hz |
Dimension |
850×500×1100mm (L×W×H) |
Weight |
580kg |

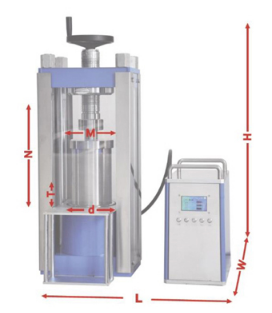

Diagram of hydraulic press |
![]() |
