Model

PC-15FS

Pressure range

0-15T(0-30Mpa)

Piston diameter

Φ80mm (d)

Integral structure

No sealing connection, oil leakage reduced

Pressure gauge

Digital display 0.00-40.00MPa

Lifting height of cylinder

30mm (T) Max.

Protective cover

Plexiglass

Pressure stability

≤1MPa/10min

Workbench diameter

Φ90mm (D)

Number of columns

Four

Working space

80*130mm (M*N)

Dimension

260*175*395mm (W*L*H)

Weight

42Kg

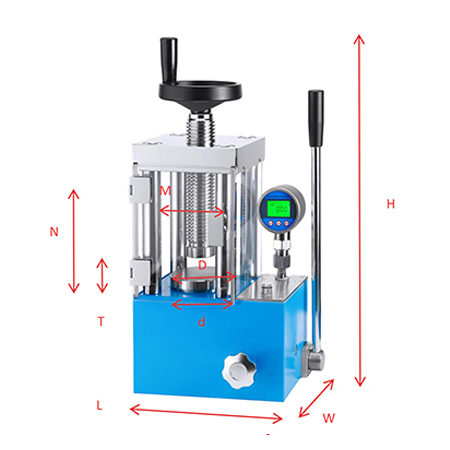

Diagram of hydraulic press size
