Parameters:
|
Model |
PC-30FS |
|
Pressure range |
0-30T(0-31.5Mpa) |
|
Piston diameter |
Φ110mm (d) |
|
Integral structure |
No sealing connection, oil leakage reduced |
|
Pressure gauge |
Digital display 0.00-40.00MPa |
|
Lifting height of cylinder |
40mm (T) Max. |
|
Protective cover |
Plexiglass |
|
Pressure stability |
≤1MPa/10min |
|
Workbench diameter |
Φ120mm (D) |
|
Number of columns |
Four |
|
Working space |
112*160mm (M*N) |
|
Dimension |
305*195*425 (W*L*H) |
|
Weight |
65Kg |
|

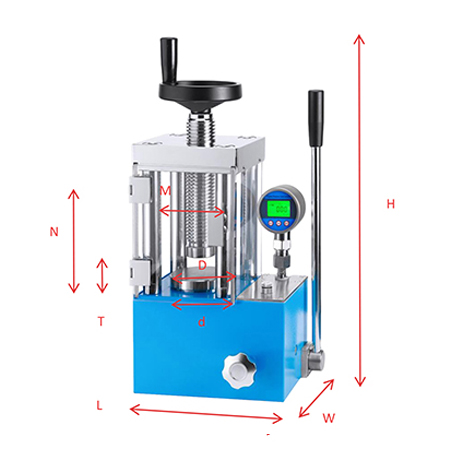

Diagram of hydraulic press size |
|
