Parameters:
Model |
PMF-F |
Sample shape |
|
Die material |
Alloy tool steel: Cr12MoV |
Indenter hardness |
HRC60-HRC62 |
Sample size |
32×32mm/ 35×35mm/40×40mm(M) |
Cavity depth |
45mm (N) |
Dimensions |
Φ88×150mm (L×H) |
Weight |
4.8Kg |

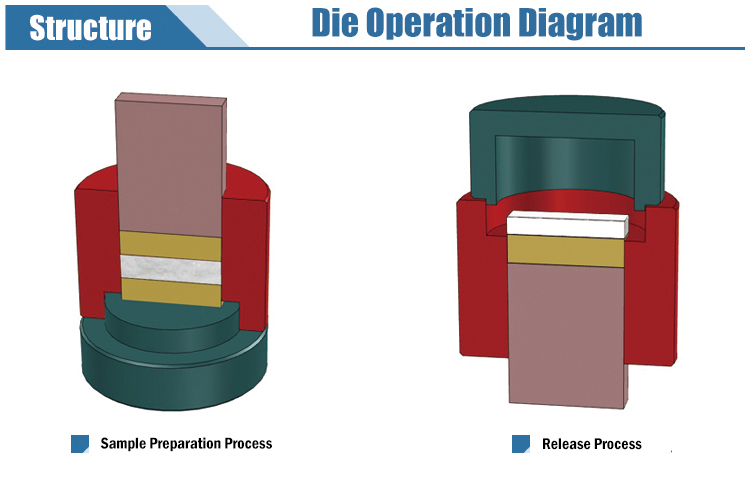

Diagram of press die |
![]() |
Note:Customized size is available, we can design it according to your need.
