Parameters:
|
Model |
PCD-40S |
|
Pressure range |
0-40T(0-30Mpa) |
|
Piston diameter |
Φ130mm (d) |
|
Integral structure |
No sealing connection, oil leakage reduced |
|
Pressure gauge |
Digital display 0.00-40.00MPa |
|
Lifting height of cylinder |
50mm (T) Max. |
|
Pressure stability |
≤1MPa/10min |
|
Pressurization mode |
Electric / manual |
|
Compensation mode |
Auto/manual |
|
Workbench diameter |
Φ140mm (D) |
|
Number of columns |
Four |
|
Working space |
115*185mm (M*N) |
|
Dimension |
295*450*500mm (W*L*H) |
|
Voltage |
220V , 50/60Hz |
|
Weight |
92Kg |
|

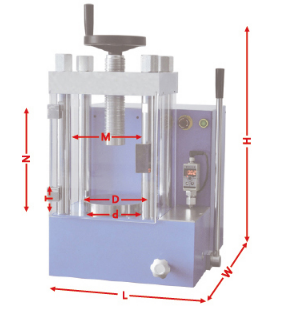

Diagram of hydraulic press size |
 |
