BASIC INFO
Parameter
|
Model |
PCH-GB |
|
Sample shape |
|
|
Die heating temp. |
Room temperature-500℃ |
|
Die material |
Alloy tool steel: Cr12MoV |
|
Indenter Hardness |
HRC60-HRC62 |
|
Sample sample |
＜Φ180mm(M) |
|
Sample thickness |
0.02-0.1mm(N) |
|
Dimension 1 |
180×180×130mm (L×W×H) |
|
Dimension 2 |
200×200×130mm (L×W×H) |
|
Dimension 3 |
300×300×130mm (L×W×H) |
|
Voltage |
220V, 50/60Hz |
|
Weight |
82Kg / 48Kg /108Kg |
|

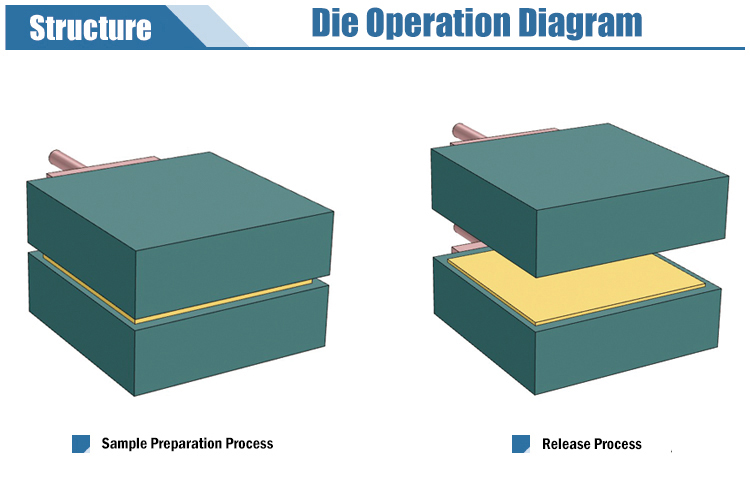

Diagram of the pressing die |
 |
