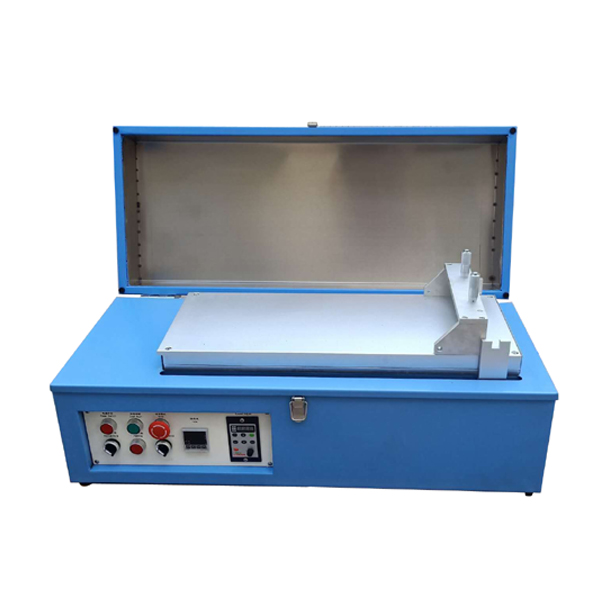

This machine is dedicated to the continuous coating process of positive and negative plates of lithium-ion batteries. It is suitable for small-scale experiments in universities and enterprises; it can also be used for ceramic thin films, crystal thin films, special nano thin films, etc.; the body is all made of stainless steel The material is beautiful and durable, and the surface is sprayed with plastic, which is easy to operate.
Specification
|
Power |
· 220V±10% AC, 50/60Hz · 2.4KW |
|
Traverse Speed |
1 - 100mm/sec adjustable ( digital display) |
|
Stroke Length |
0 - 300mm |
|
Platform |
· Aluminum alloy flat vacuum chuck · Vacuum chuck Dimensions: 915mm(L)×220mm(W)×30mm(H) |
|
|
· A vacuum pump is included |
|
Film Applicator |
· Built-in pushing bar for using micrometer adjustable applicator · 180 mm width Applicator with micrometer adjustable head included |
|
The accuracy of Film thickness |
+/- 0.02mm |
|
Application Notes |
· coated cathode and anode for Li-Ion battery coat an electrode sheet. · It is recommended to operate the coater under a fume hood. · May need a vacuum mixer to remove air bubbles inside slurry to make uniform coatings · You may need a Slurry Viscosity Tester to make coatings consistent · You may need a vacuum oven to dry the films and remove binder after coating. |
|
|
· Bottom Heated vacuum chuck · Max. working power: 2400W · Max. heating temperature: 120°C · Precision temperature controller with +/- 1ºC accuracy. · Tip: For drying the coated Li-ion battery electrode sheets (usually 80C is required), simply set the target temperature in the temp. controller, close the lid and wait for the slurry to be dried. |
|
Net weight |
about 85kg |
|
Warranty |
One-year limited with lifetime support |
