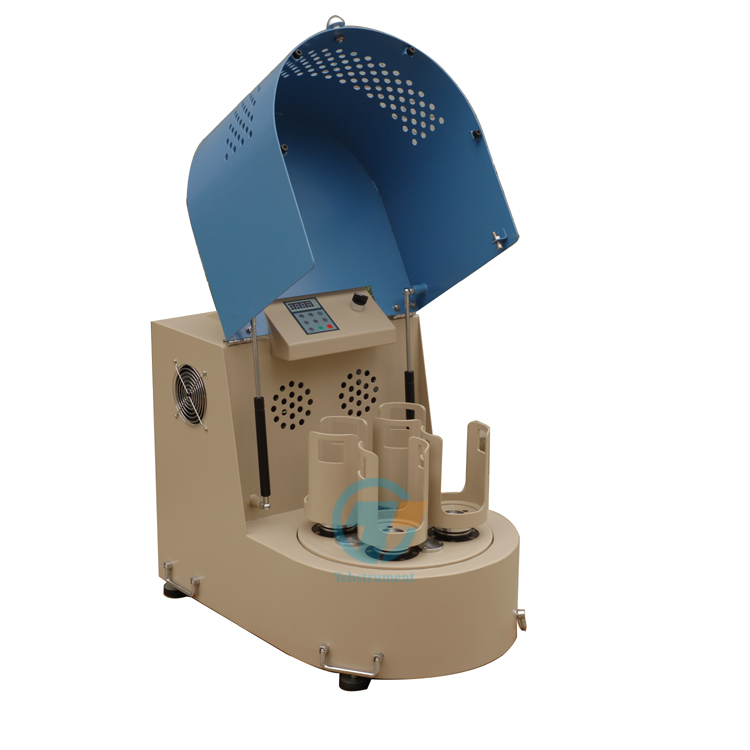

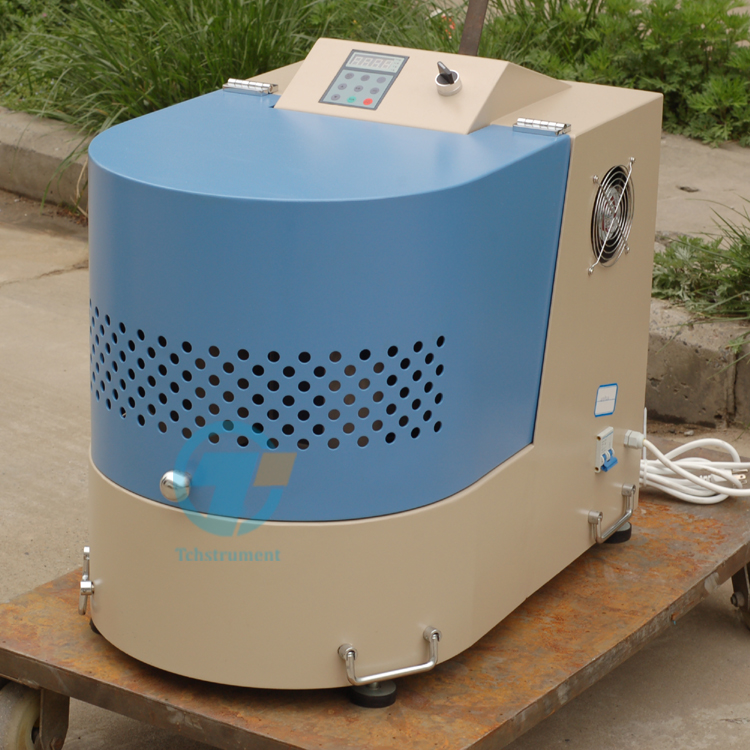

MSK-SFM-1 has four ball grinding tanks installed on one turning plate. When the plate rotates, the tank axis makes the planetary rotation in opposite directions and the balls in the tanks grind and mix samples in high-speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. (Note: granularity of grand products is dependent on the material properties, size, and quantity of milling media and processing time. According to customer's feedbacks, minimum granularity can be as small as 0.1 um).
Specification
|
Working Voltage |
· 208 - 240V AC (single phase), 50/60 Hz · 220V AC Power plug is not included. |
|
Max. Power Consumption |
500W |
|
Speed control |
Variable by changing frequency of three phase AC motor |
|
Rotary Rate |
Main plate rotation: 30-350 rpm Mixing tank self-rotation: 60-700 rpm |
|
Digital display |
· Digital display the speed in RPM/Hz · Timer controls major platen's running time from 0.1 - 100 hours · Timer control tank rotation time from clockwise to anticlockwise direction:0.1 - 50 hours · Number of operating cycle: 0 - 100 |
|
|
· Four 320ml Nylon Jars are included · 32 ZrO2 (YSZ) balls with various sizes are included (8 balls per jar). If extra YSZ balls are needed please click the pic below to order. · Lock Clamps are included for easy jar securing · Various jars are available as optional upto 500ml capacity · Four jar holders can accommodate jar size up to 107mm O.D x 112mm H · O-ring can be inserted between the lid and jar for wet grinding (ID:90mm, OD:104mm) · Various jars up to 500ml capacity are available as option at the picture below
|
|
Warranty |
· One year limited warranty with lifetime support · Consumable parts, such as Nylon jar and grinding ball, are not covered by the warranty |
|
Compliance |
· CE Certified |
|
Production Dimensions |
· 450mm(L) x 490mm(W) x 530mm(H) |
|
Net Weight |
· 220 Lb |
|
|
· SS304 mixing jar is suitable for grinding various metal materials · For milling the oxide material, please choose alumina/Nylon jars and zirconia media. DO NOT USE stainless steel balls in Alumina jars. · Must place 4 jars or 2 in symmetrical with similar weight in the ball mill to keep balance during rotation, If using one jar, you must put another jar with the same weight in symmetrical position. Otherwise, unbalance rotation, especially one jar, may damage the machine. |
|
Shipping Dimensions |
48"(L) x 40"(W) x 42"(H) |
|
Shipping Weight |
410 lbs |
