BASIC INFO
Parameters:
|
Model |
PMS |
|
Sample shape |
|
|
Die material |
Alloy tool steel: Cr12MoV |
|
Indenter hardness |
HRC60-HRC62 |
|
Sample size |
Φ12mm/Φ13mm/Φ15mm/Φ20mm(M) |
|
Cavity depth |
40mm(N) |
|
Dimensions |
Φ88×175mm(L×H) |
|
Weight |
3Kg |
|

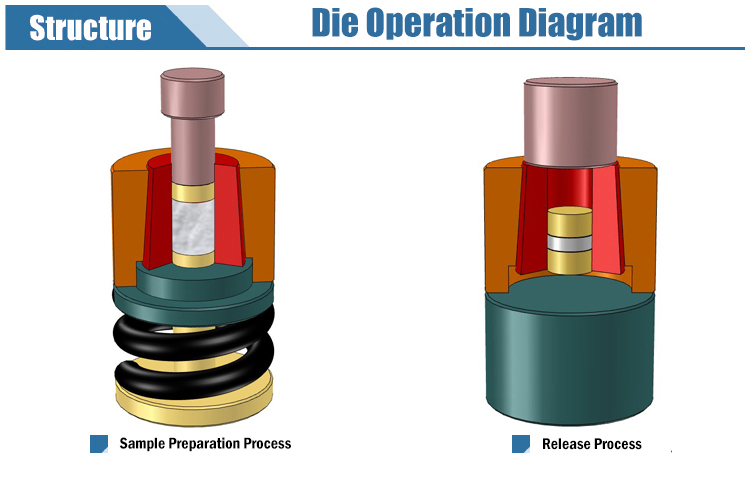

Diagram of press die |
 |
Note:Customized size is available, we can design it according to your need.
