Water Cooled Sealing Flange for 50mm dia. Tube

  • Tube diameter:O.D 50mm +/- 1.0 mm
BASIC INFO

Tube diameter

OD 50 +/- 1.0  mm

 Features

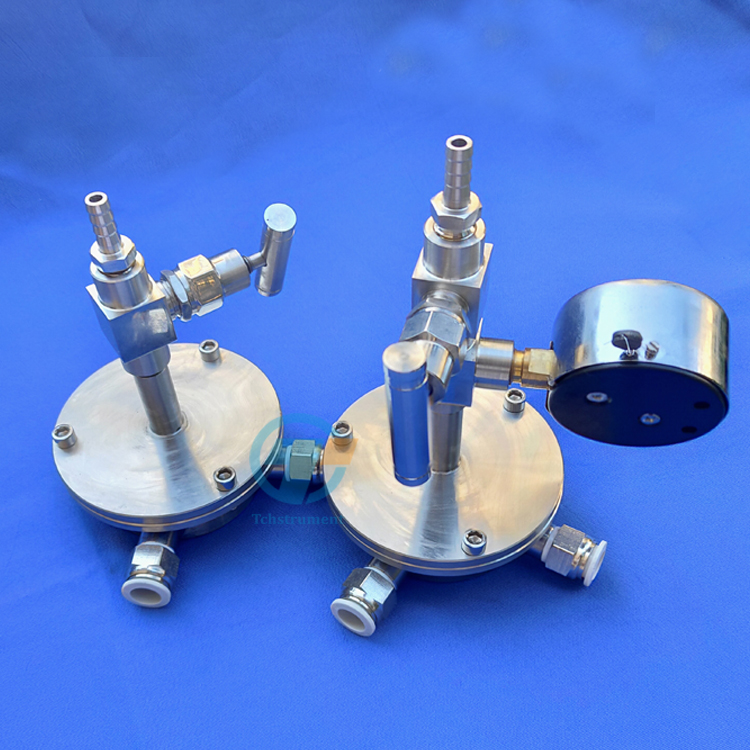

· Made of Stainless Steel with double high-temperature sealing O-rings on the flange.

· Stainless steel needle valve with 1/4" pipe adaptor.

· 12mm push fitting for water pipes.

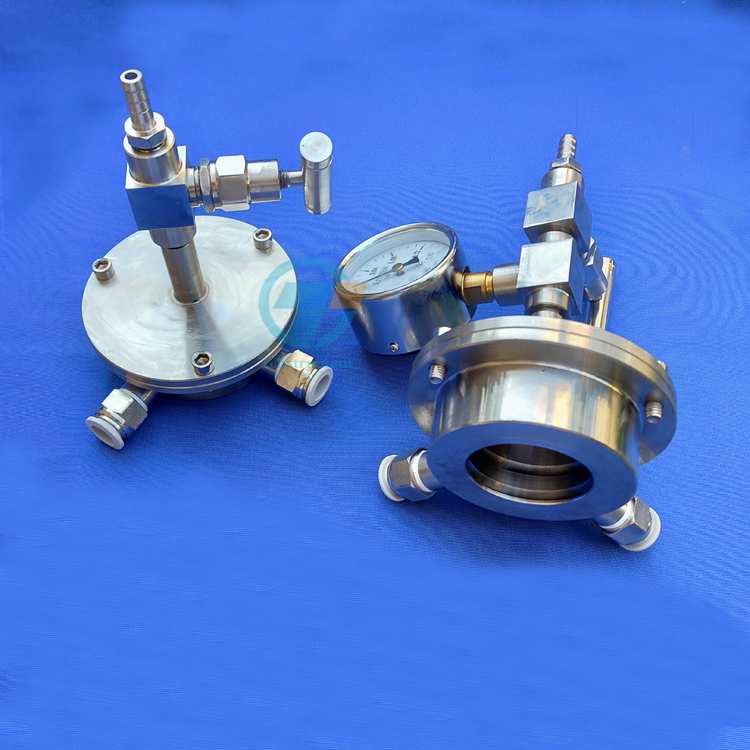

· The assembly kit will seal one end of 50-52 mm diameter ceramic and quartz tube. Vacuum meter is installed on one side of the flange.

Vacuum level

· 10E-2 torr by a mechanical pump

· 10E-5 torr by a small turbopump

· 10-6 torr by hi-speed turbopump



Optional Accessories

For CVD application, please choose anti-corrosive vacuum gauge

You can choose various end of fitting as options

Application Notes

 recirculating Water Cool System is the ideal tool for supplying cooling water to the flange set.

Warning

· Must put a refractory tube block in front of the flange to avoid heat radiation melt sealing O-ring. You may order a ceramic block in related products.

· Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.

· For liability considerations, we do not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.


We supply OEM service, customized size flange can be designed according to your need!



PREVIOUS:Flange for 2'' (50mm) O.D tube with KF25 port
NEXT:60mm dia Tube Furnace Vacuum Sealing Assembly Flange
