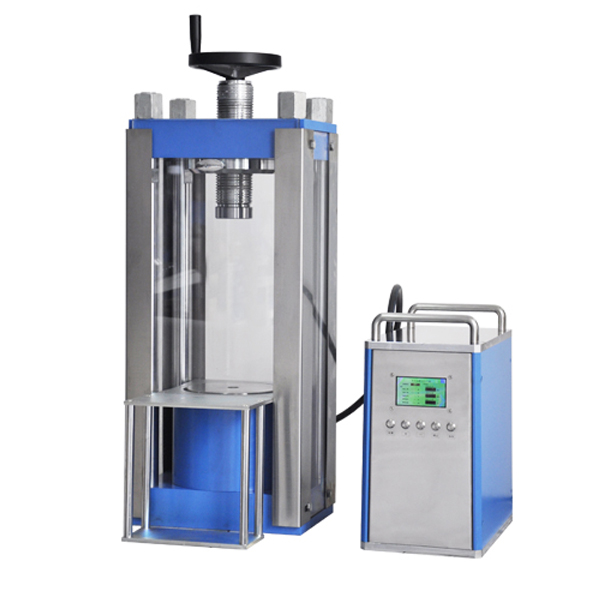

Model

PCD-100S

Pressure range

0-100.0T(0-33Mpa)

Piston diameter

Φ200mm (d)

Working process

Programmed pressure relief

Pressure holding time

0-999.59 Sec.

Intensity conversion

Automatic conversion of die pressure

LCD

4.3”

Equipment protection

Steel plate equipped with plexiglass door

Lifting height of cylinder

50mm (T) Max.

Working space

260*400mm (M*N)

Dimension

850*500*1100mm (W*L*H)

Voltage

220V , 50/60Hz

Weight

520Kg

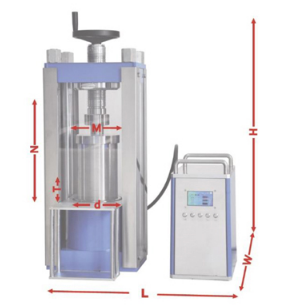

Diagram of hydraulic press size
