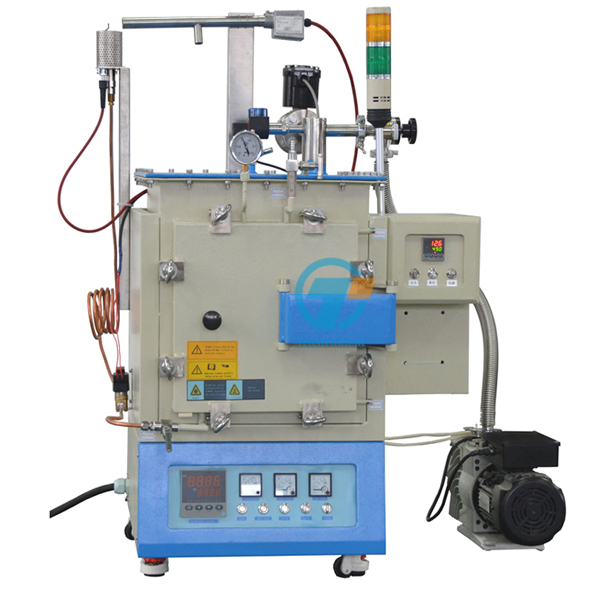

Model

TCHGF12Q-H-I

TCHGF12Q-H-II

TCHGF12Q-H-III

Chamber size

(DXWXH)

300X200X200

400X300X300

500X400X400

Power (KW)

4Kw

9Kw

16Kw

voltage(V)

220V

220V

380V

Furnace structure

1. It adopts a double-layer shell structure and is equipped with fan for air cooling.

2. A water cooling system is installed at the door of the furnace to reduce the sealing temperature of the O-ring.

3. A combustion system is installed (including: igniter, combustion controller, burner).

4. An explosion-proof valve is installed (the opening pressure of the valve can be set freely).

5. A hydrogen detector is installed to detect hydrogen leakage.

Max. temperature

 1200℃

working temperature

1100℃

thermocouple

K type

temperature controller

        · FA-YD518P-AG temperature controller included.

         · Proportional–integral–derivative control (PID control) and auto-tune function

         · 30 segments programmed with ramping, cooling and dwelling steps

         · Built-in over-temperature alarm and thermocouple failure alarm

          · +/- 1 ºC temperature control accuracy

         · Default DB9 / PC communication port

         · MET Certified

temperature accuracy

+/- 1°C

heating rate

≤20℃/min , suggest ≤10℃/min

heating element

Kanthal-A1resistance wire

DHQ hydrogen igniter (optional)

The TCHDHQ igniter is mainly used for the treatment of exhaust gas. If the exhaust gas coming out from furnace has a certain danger if directly outlet to the outside, the TCHDHQ igniter can burn the flammable gas in the exhausted gas.

Parameter:

1. Ignition process: turn on the ignition button, open the solenoid valve, the gas flows out to the ignition nozzle, the ignition nozzle emits spark ignition, the flame detector detects the flame, the ignition succeeds, the green light is on, the flame detection does not detect the flame, the ignition fails, The yellow light is on and accompanied by an alarm sound, and the air inlet solenoid valve is automatically closed.

2. Solenoid valve: 220V normally closed

3. Power supply: 220V 50/60HZ 200W

4. Electric shock capacity: up to 2A, 253V, no internal fuse wire

5 Number of control valves: 1

Gas detector

Optional

warranty

1 year
