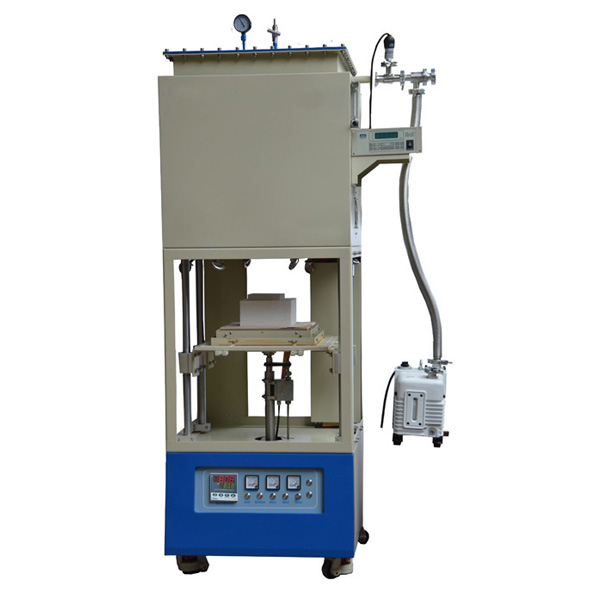

Model |
TCHVSF1400-I |
TCHVSF1400-II |
|
Power |
7KW |
13KW |
|
Chamber size (DXWXH) |
200X200X200mm |
300X300X300mm |
|
Dimension(DXWXH) |
700X700X1950mm |
900X900X2200mm |
|
Net weight |
265Kg |
310Kg |
|
Voltage |
220V, 50/60Hz |
380V, 50/60Hz |
|
Heating elements |
SiC rods |
|
|
Temp. controller |
· 30 segments programmed with ramping, cooling and dwelling steps · Built-in over-temperature alarm and thermocouple failure alarm · +/- 1 ºC temperature control accuracy · Default DB9 / PC communication port · MET Certified |
|
|
Heating rate |
≤20 ℃/ Min |
|
|
Suggest heating rate |
10℃/ Min |
|
|
Cold state vacuum degree |
10Pa |
|
|
Chamber material |
1600 type alumina polycrystalline fiber (alumina content above 95%) imported from Japan |
|
|
Max. Temp. |
1400 ℃ |
|
|
Working temp. |
≤1300 ℃ |
|
|
Working temp. Under vacuum |
1100 ℃ |
|
|
Surface temp. |
≤45 ℃ |
|
|
Thermocouple |
S |
|
|
SCR |
106/16E from Germany |
|
|
Protection system |
The furnace door is equipped with a travel switch, and when the furnace door is lift down, the power supply will be automatically cut off to prevent the risk of electric shock when the heating element is touched. |
|
|
Travel switch |
When the lifting rod reaches the highest or lowest point, the travel switch will automatically power off the lifting rod, so that it will not over-lift or over-drop |
|
|
Lifting system |
Using automatic lifting stainless steel electric push rod, after pressing the up or down button, the material will lift up or down freely with the lifting tray |
|
|
Pushing rod power |
150W |
|
|
Lifting rate |
420mm/ Min |
|
|
Vacuum pump (optional) |
Model: VRD-8 Ultimate vacuum degree:5X10-2 Pa |
|
|
Digital pressure gauge (optional) |
INFICON PCG554 Testing range:3.8x10-5 -1125 Torr. |
|
|
Warranty |
1 year ( not included the heaters) |
|
Max. Working temperature under difference atmosphere:
|
Air |
1400℃ |
|
Vacuum |
900-1100℃ |
|
N2 |
1270℃ |
|
H2 |
1100℃ |
|
Ar |
1300℃ |
