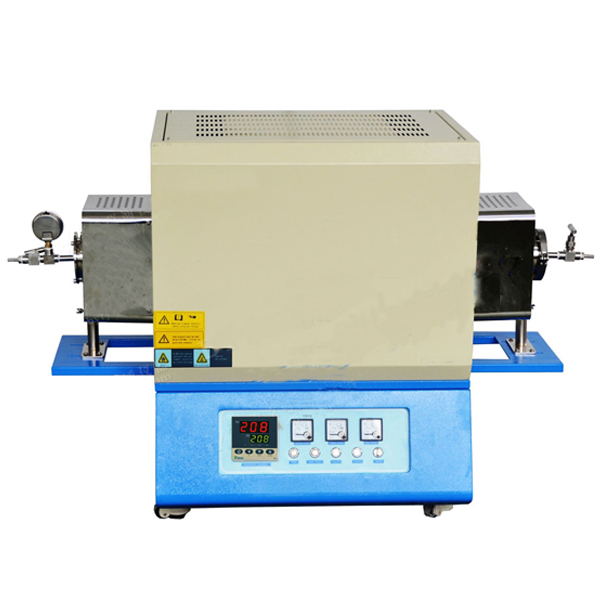

Model

TCHVTL1400-I-60

TCHVTL1400-I-80

TCHVTL1400-I-100

Power

4KW

4KW

6 KW

Tube size

(OD)(mm)

Dia 60 X1000mm

Dia80X1000mm

Dia100X1000mm

Dimension(mm)

1120X490X855

1120X490X855

1120X520X945

Supply voltage

220V,50/60Hz

Phase

Single

Max. Temp.

 1400 ℃

Working  temp.

 ≤1300 ℃

Furnace tube

High purity alumina tube

Heating element

SiC rods

Temp. controller

PID automatic control with 30 programmable segments for precise control of heating rate, cooling rate and dwell time.

Built-in over temperature alarm and protection allows for operation without an attendant.

Accuracy: +/- 1°C

Thermocouple

 S type

Trigger

 Phase-shifted trigger

Heating zone length

300mm

Heating rate

≤30 ℃/ Min (adjustable), ≤15  ℃/ Min is recommended.

Surface temp.

≤45℃

warranty

One-year limited warranty (Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty
