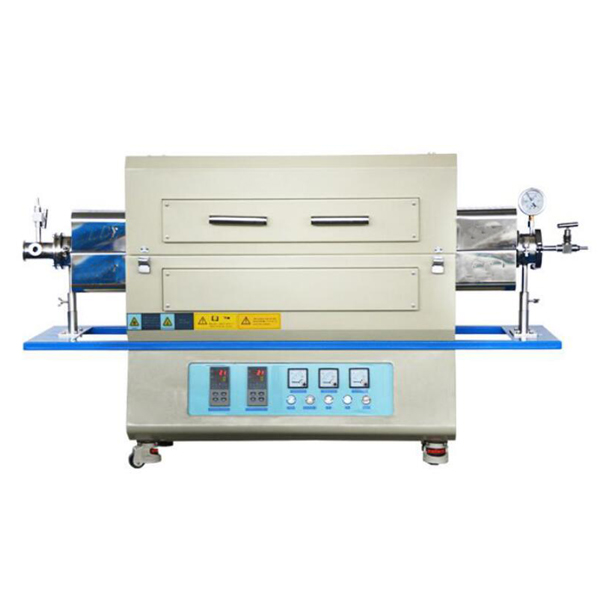

Model

TCHTL1500-II-60

TCHTL1500-II-80

Tube size(mm)

Φ60X1000

Φ80X1000

Power

6KW

6KW

Heating zone length

190+190mm

190+190mm

Max. Temp.

1400℃

Working temp.

≤1300℃

Heating element

SiC rods

Tube material

High purity alumina tube

thermocouple

S type

Heating rate

≤20℃/min   suggest：≤10℃/min

Voltage

204-240V, 50/60HZ

Temp. controller

PID automatic control with 30 programmable segments for precise control of heating rate, cooling rate and dwell time.

Built-in over temperature alarm and protection allows for operation without an attendant.

Accuracy: +/- 1°C

Vacuum degree

Limited by pump ( pump is not included )

        · 10E-5 torr can be reached by molecular pump

        · 10E-2 torr by a mechanical pump.

Warranty

One year limited warranty, not include the alumina tube and the sealing O rings.
