Model

PCH-600A

Pressure range

0-24T (0-34MPa)

Piston diameter

Φ95mm(d)

Integral structure

No sealing connection, oil leakage reduced

Thermostat control

0℃-600℃

Die heating

0℃-300℃

Thermostat controller accuracy

0.1℃

Thermal insulation

Imported thermal baffle

Cooling mode

Air / Water cooling (water chiller is optional)

Die cavity size

Inner hole ＜20mm

Main unit dimension

245×175×415mm (K×P×H)

Overall dimension

800×470×415mm (L×W×H)

Power

300W

Voltage

220V, 50/60Hz

Weight

48kg

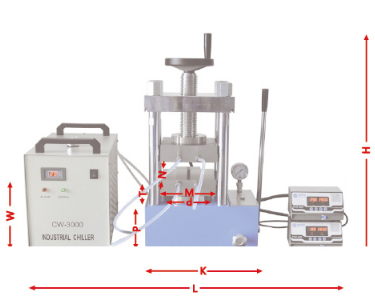

Diagram of hydraulic press
