Model

PCH-600D

Pressure range

0-60T (0-33MPa)

Piston diameter

Φ150mm(d)

Integral structure

No sealing connection, oil leakage reduced

Thermostat control

0℃-600℃

Die heating

0℃-300℃

Thermostat controller accuracy

0.1℃

Thermal insulation

Imported thermal baffle

Cooling mode

Air / Water cooling (water chiller is optional)

Heating area

Double platens heating 180×180mm (M×N)

Main unit dimension

405×260×525mm (K×P×H)

Overall dimension

950×470×525mm (L×W×H)

Power

1000W

Voltage

220V, 50/60Hz

Weight

180kg

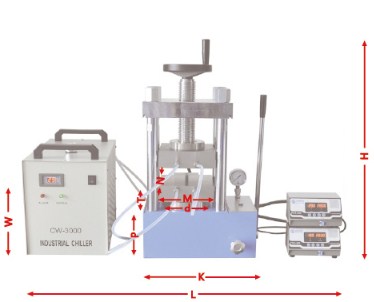

Diagram of hydraulic press
