Model

PP-600D

Pressure range

0-25.0T

Working process

Programmed pressure relief

Pressure holding time

0-999.59 Sec.

Thermostat control

0℃-600℃

Die heating

0℃-300℃

Thermostat controller accuracy

0.1℃

Insulation mode

Imported insulation plate

Cooling mode

Air / Water cooling (water chiller is optional)

Heating area

180×180mm (M×N)

200×200mm (M×N)

Dimension

280×420×620mm (L×W×H)

Power

2000W

Voltage

220V, 50/60Hz

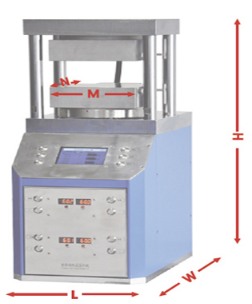

Diagram of hydraulic press
