Model

PP-600E

Pressure range

0-30.0T

Working process

Programmed pressure relief

Pressure holding time

0-999.59 Sec.

Thermostat control

0℃-600℃

Die heating

0℃-300℃

Thermostat controller accuracy

0.1℃

Insulation mode

Imported insulation plate

Cooling mode

Air / Water cooling (water chiller is optional)

Heating area

300×300mm (M×N)

Dimension

400×500×720mm (L×W×H)

Power

3000W

Voltage

220V, 50/60Hz

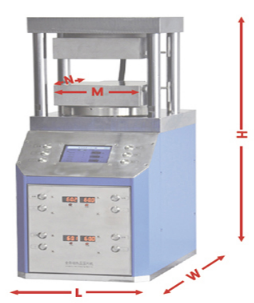

Diagram of hydraulic press
