Parameters:
|
Model |
PC-600DG |
|
|
Pressure range |
0-12.0T |
|
|
Way of pressure |
Manual pressure |
|
|
Piston |
Φ70mm |
|
|
Thermostat control |
0℃-600℃ |
|
|
Die heating |
0℃-500℃ |
|
|
Thermostat controller accuracy |
0.1℃ |
|
|
Insulation mode |
Imported insulation plate |
|
|
Cooling mode |
Air / Water cooling (water chiller is optional) |
|
|
Heating area |
180×180mm (M×N) |
200×200mm (M×N) |
|
Dimension |
280×320×520mm (L×W×H) |
|
|
Power |
1800W |
|
|
Voltage |
220V, 50/60Hz |
|
|

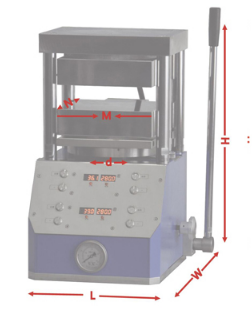

Diagram of hydraulic press |
 |
|
