Model

PCH-600CG

Pressure range

0-24T (0-34MPa)

Piston diameter

Φ95mm(d)

Integral structure

No sealing connection, oil leakage reduced

Thermostat control

0℃-600℃

Die heating

0℃-500℃

Thermostat controller accuracy

0.1℃

Thermal insulation

Imported thermal baffle

Cooling mode

Air / Water cooling (water chiller is optional)

Heating area

Double platens heating 100×100mm (M×N)

Main unit dimension

245×175×500mm (K×P×H)

Overall dimension

1000×470×500mm (L×W×H)

Power

1000W

Voltage

220V, 50/60Hz

Weight

58kg

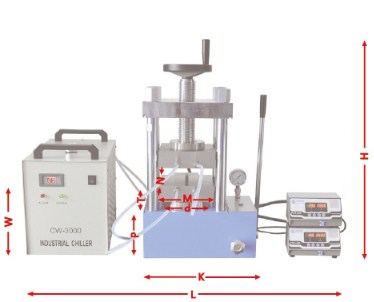

Diagram of hydraulic press
