Model

PP-600FG

Pressure range

0-50.0T

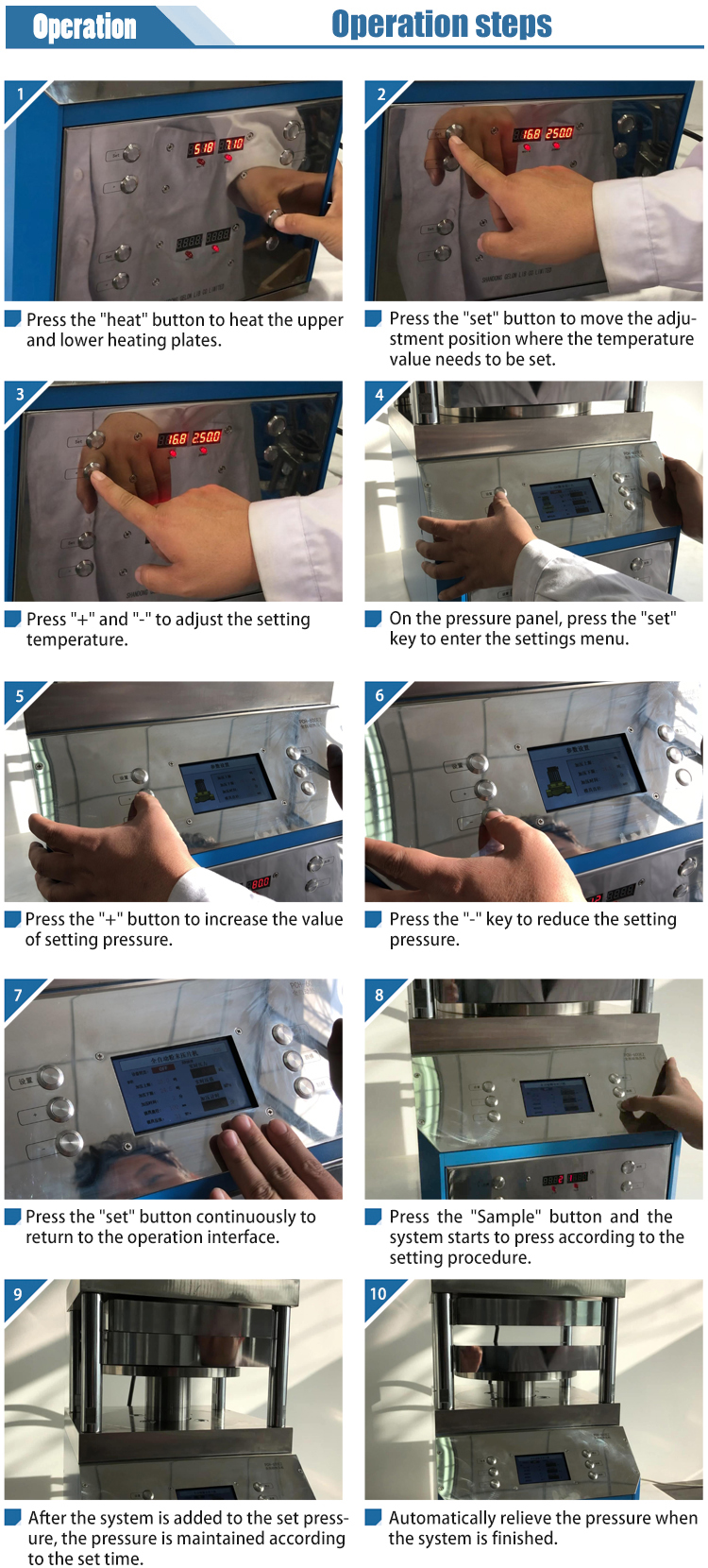

Working process

Programmed pressure relief

Pressure holding time

0-999.59 Sec.

Thermostat control

0℃-600℃

Die heating

0℃-500℃

Thermostat controller accuracy

0.1℃

Insulation mode

Imported insulation plate

Cooling mode

Air / Water cooling (water chiller is optional)

Heating area

400×400mm (M×N)

Dimension

500×600×780mm (L×W×H)

Power

8000W

Voltage

220V, 50/60Hz

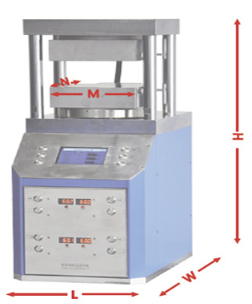

Diagram of hydraulic press
