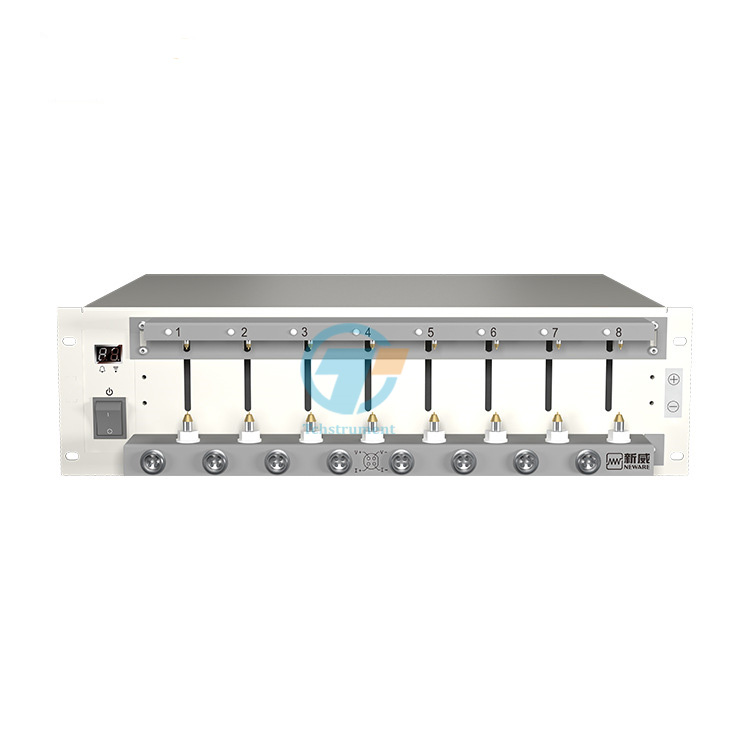

Model: |
BTS4000- |
5 |
V |
12 |
A |
BatteryTestingSystem |
SN: |
CT-4008T |
-5V12A |
-S1/204n |
||||
Items |
Values |
|||||||||||||
Input AC |
AC 220V/110V ±10% / 50Hz |
|||||||||||||
Input power |
826 W |
|||||||||||||
Resolution |
AD: 16bit; DA: 16bit |
|||||||||||||
Input impedance |
≥1MΩ |
|||||||||||||
Voltage |
CV output range |
25mV~5V |
||||||||||||
Min discharge voltage |
2V for universal holder,2.5V for 2m cable |
|||||||||||||
Accuracy |
± 0.05% FS |
|||||||||||||
Stability |
± 0.05% FS |
|||||||||||||
Current |
Output range/channel |
Range1: 5mA-1A; Range2: 1A-6A; Range3: 6A-12A |
||||||||||||
Accuracy |
± 0.05% FS |
|||||||||||||
CV cut-off current |
Range1: 2mA;Range2: 12mA;Range3: 24mA |
|||||||||||||
Stability |
± 0.05% FS |
|||||||||||||
Power |
Output power/channel |
60 |
W |
|||||||||||
Stability |
± 0.1% FS |
|||||||||||||
Time |
Current response time |
<1ms (10%FS~90%FS) |
||||||||||||
Working step time |
≤(365*24)h/step Timeformat-00:00:00.000(h, m, s, ms) |
|||||||||||||
Data record |
Data record conditions |
Min data record interval: 100ms |
||||||||||||
Min voltage change: 10mV |
||||||||||||||
Min current change: 2mA;12mA;24mA |
||||||||||||||
Frequency |
10Hz |
|||||||||||||
Charge |
Charge modes |
CC, CV, CCCV, CP |
||||||||||||
Cut-off condition |
Voltage, Current, Time, Capacity, Energy, -△V |
|||||||||||||
Discharge |
Discharge modes |
CC, CV, CCCV, CP, CR |
||||||||||||
Cut-off condition |
Voltage, Current, Time, Capacity, Energy |
|||||||||||||
Pulse |
Charge |
CC, CP |
||||||||||||
Discharge |
CC, CP |
|||||||||||||
Min pulse width |
500ms |
|||||||||||||
Pulse counts |
Up to 32 |
|||||||||||||
Chg and Dschg switch |
Supported |
|||||||||||||
Cut-off condition |
Voltage, Time |
|||||||||||||
DCIR |
Calculated DCIR values available in BTSDA |
|||||||||||||
Cycle |
Max cycles |
65535 |
||||||||||||
Max steps |
254 |
|||||||||||||
Cycle nest |
3 |
|||||||||||||
Protection |
Safety protection |
● Power-failure data protection |
||||||||||||
● Offline operation mode |
||||||||||||||
● User-definedprotectionconditions,suchasupperandlower limited current/voltage, delay time, temperature, etc. |
||||||||||||||
Channels feature |
Independent pairs of closed loop for constant |
|||||||||||||
Channels control mode |
Independent control |
|||||||||||||
Data acquisition method |
Kelvin connection |
|||||||||||||
Noise |
<85dB |
|||||||||||||
Database |
MySQL |
|||||||||||||
Communication |
TCP/IP |
|||||||||||||
Operating system |
Windows 7/8/10 64bit |
|||||||||||||
Data export |
EXCEL, TXT, CSV, PDF, Plot/Graph |
|||||||||||||
Min. disk drive |
500GB |
|||||||||||||
Communication port |
Ethernet port |
|||||||||||||
Leak Current |
<5μA |
|||||||||||||
Channels per unit |
8 |
|||||||||||||
Operation and storage environment requirement |
||||||||||||||
Items |
Values |
|||||||||||||
Operation environment temperature |
0℃~40℃ (When the temperature is 25±10℃, the accuracy offset caused by temperature is less than 50ppm /℃) |
|||||||||||||
Storage environment temperature |
-10℃~50℃ |
|||||||||||||
Operation environment humidity |
≤70% RH(no moisture condensation) |
|||||||||||||
Storage environment humidity |
≤80% RH(no moisture condensation) |
