Features

        · Welding time, delay time, welding layers...adjustable,

         · Preset welding programs selectable for Al and Cu (Note: Welding power can be readjusted to fit the needs for welding other types of metals such as Au, Fe, Ni, Ag...);

         · Up to four recipes can be stored in the Al or Cu welding programs.

        · Amp meter provides instant monitoring of the welding current

Input Voltage

AC220V +/-10%, 50/60Hz  (Please select in the product option bar)

Max. Power Consumption

           · 800W  (Max 15 layers)

        · (Please email us to VIEW 4200W version to weld MAX 50 layers)

Welding Area

4mm(L) x 4mm(W)

Welding Head

         · Two sets of the welding heads and welding bases are included for welding both aluminum & copper current collectors from 1 to 15 layers

         · One set of the welding head and base is pre-installed.

         · Two types of patterns for welding various metals

        · Three head welding head available for high throughput welding for both aluminum and copper current collectors. Please contact us for more options.

Ultrasonic Frequency

40K Hz

Pneumatic Control (Not included)

Air pressure at 85 psi is required for the operation (Air Compressor is not included. Please contact us to order)

Attention: If a gas cylinder is used instead of air compressor, a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.


KF40 Feedthrough (Not included)

        · A modified version MSK-800W-AR can be safely used in Ar gas condition.

         · Please order modified version MSK-800W-AR (Feedthrough included) to use in the glove box.

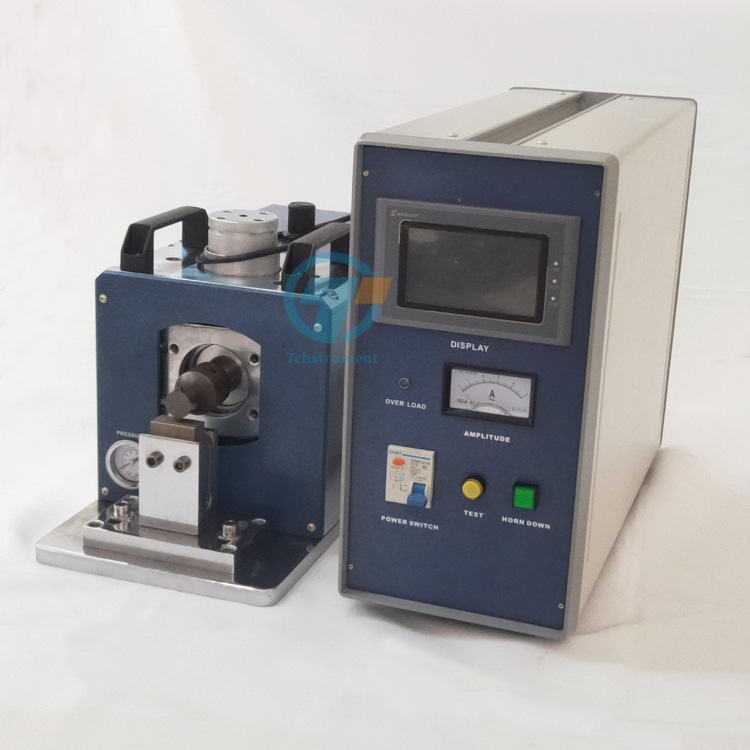

Product Dimensions

         · Controller: 481mm(L) x 188mm(W) x 375mm(H)

       · Welder: 513mm(L) x 220mm(W) x 275mm(H)

Compliance

CE Certified

Warranty

One Year limited warranty with lifetime support

Net Weight

50 kg (110 lbs)

Shipping Weight & Dimension

       · 150 lbs

       · 40" x 30" x 27"

Application Note

        · The MSK-800W ultrasonic welder can't be used in Ar gas condition because electric arc occurs during the process. Use N2 gas if needed.

        · Nickel and Aluminum Tabs can be welded onto different types current collecting substrates (Aluminum or Copper) when making battery electrodes.

         · A modified version MSK-800W-AR can be safely used in Ar gas condition. A KF-40 feedthrough is provided which separates the control unit from the glovebox (only welding unit is inside the glovebox) and delivers the operating gas from the gas cylinder (or air compressor) outside the glovebox to the welding unit inside the glove box. Please contact usfor quote of MSK-800W-AR in advance if Ar gas operating atmosphere will be considered.

         · Compact design enables the operation inside the glove box with Ar atmosphere where Lithium Sulfur, Lithium Air, Lithium Solid State or Li-ion half cell will be assembled. Please click the images in below to understand these technologies and how it fits in a glove box.
