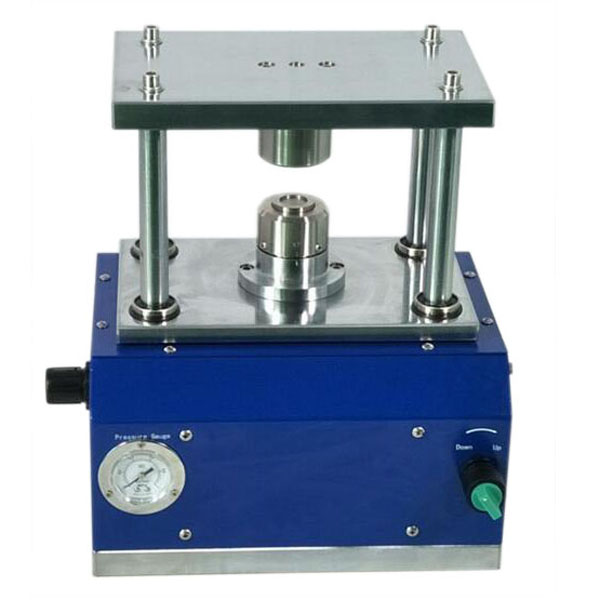

Gas Driven Pneumatic Coin Cell Case crimping machine

BASIC INFO

This is a compact crimper driven by compressed inert gas or air for various types of coin cells such as CR2016, CR2025, and CR2032, etc. It provides more accurate pressure control to achieve high-quality crimping with better consistency, repeatability, and faster speed. Such a device is 1000 grade cleanroom compatible and it will satisfy the most demanding battery assembling environment. In contrast to the hydraulic crimper, gas-driven crimper is not going to contaminate glove box or cleanroom.

Specification:

Compressed Gas and Force	Manual Adjustable Sealing Force: <1.0 MPa ( 0.9MPa is recommended.) Operation Pressure of Gas: 0.7 ~ <1.0MPa (Strict maximum)
Output Dimension	O.D +0.15mm after crimping (Original O.D 19.96mm, then output is about 20.11mm)
Die Set Material	Hardened Steel
Die Set & Compatibility	Assembling dies for CR2016, CR2025 & CR2032 coin cells Option: assembling dies for CR12XX, 24XX, or AG are available upon request, please contact us for details 100 pcs Coin cell cases (CR2032 cases) are included in the package for testing and immediate use Spare crimping dies ( CR20XX, CR1220, CR23XX, CR24XX) can be ordered separately by clicking the 2nd picture on the left.
Measurement Accuracy	± 0.5%FS
Glove Box Compatibility	A KF40 glovebox Feedthrough Set (with the necessary connector to gas cylinder) is included for connecting an inert gas source to the crimper inside the glove box. The feedthrough set includes KF40 quick clamp feedthrough & a quick clamp. 12mm O.D. tube to 8mm O.D. adapter is included 3 Tube: 1.5m 8x5mm blue FR-PPR tube(Crimper gas inlet), 1.5mm 6x3mm blue FR-PPR tube(Crimper gas outlet), 2m 8x5mm clear PU tube(connect to the gas source).
Stroke Length	20mm +/- 0.1mm
Gas Consumption	490ml/stroke
Clean Room Compatibility	1000 grade cleanroom compatible
Compressive Gas	Inert gas tank or air compressor (0.7~1Mpa) is needed for the machine operation, please purchase separately. When Operating Inside the Glovebox, High Purity Inert Gasses (Ar or N2) must be used For the operation outside the glove box, you may use Air Compressor. (not included) Attention: If a gas cylinder is used instead of air compressor, a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.
Structure	Heavy Duty Steel
Warranty	One Year limited warranty with lifetime support (Rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty)
Application Notes	Maintenance: Electrolytes are highly corrosive materials. Crimping dies must be cleaned with ethanol after each use to avoid corrosion and deformation. Please browse our disassembling variation for disassembling coin cell. Do not use air compressor when operating the unit in the glove box. Otherwise, air can flow inside and cause contamination. Use high purity inert (Ar or N2) gas instead. To avoid damaging the machine, the gas pressure must be lower than 1.0MPa (10 bars or 145 PSI). Attention: Please use our Coin Cell Cases with our crimper. We don't guarantee the crimping quality if other brand cells are used.
