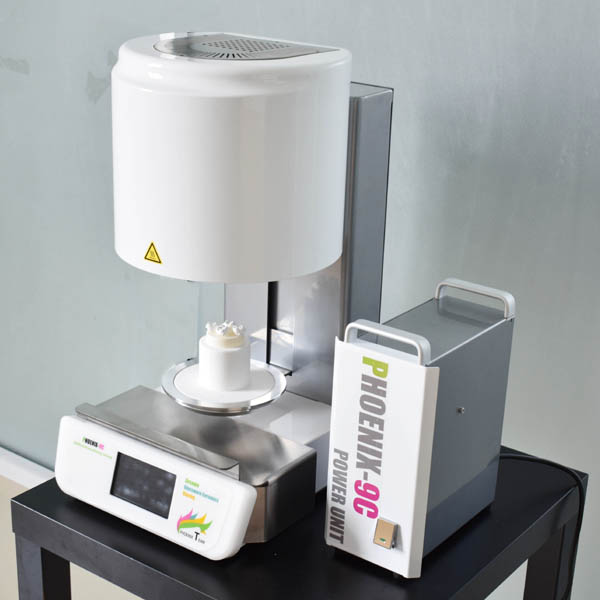

Dental Zirconia Fast Sintering Furnace Heated by SiC Rods

Dental Zirconia Fast Sintering Furnace Heated by SiC Rods

  • Max. temperature:1530℃
  • Max. heating rate: 200 C/min
BASIC INFO

The Feature:

●Voice prompt function.

●High quality temperature automatic adjustment function, to ensure the

actual temperature error within + / - 1.5 degrees.

●It is easy to operate and small in size. At present, it is one of the smaller

furnaces in the world.

●Precision stepper motor drive, smooth free operation and no jitter.

●High purity silicon carbide rod / silicon molybdenum rod heater.

●Hyperbolic sintering system, automatic temperature calibration before

each sinter process.

●Low noise tray and the speed is programmable.

●Fast sintering zirconia with full anatomical morphology.

●The pre-drying time can be set for baking zirconia denture.

●The maximum temperature can be set to 1530 ℃.

●Fast glazing is finished in 9 minutes.

●The maximum heating rate is 200 C/min.

●There is no need to preheat the sintering furnace in advance. Ready to

use in any time.

●Automatic fast cooling technology.

●Up to 8-20 restorations (60mm tray) can be sintered.

●True color touch screen, easy to operate.

●90 custom programs and built-in programs.

●Status indication.


The Specification:

The velocity of temperature increasing: 200℃/min max.

The max temperature:: 1530℃ max

The time which can be kept at the max temperature: 2 H

WXDXH :width 27cm Depth 36cm Height 56cm

Usable measure (firing chamber)::6.5cm(3.5”

Net weight:20Kg

Weight include the package:25.5Kg



ELECTRIC POWER

Operation range:100-120V 50/60HZ

230V 50/60HZ

Electric current:14.5ampere@110V 7.0ampere@230V

Power:max 1300w- 5 -
