Parameters:
|
Model |
PCD-600E |
PCD-600F |
|
Pressure range |
0-30T |
0-40T |
|
Working process |
Automatic pressure |
|
|
Pressure holding time |
Automatic pressure relief |
|
|
Thermostat control |
0℃-600℃ |
|
|
Die heating |
0℃-300℃ / 0℃-500℃ |
|
|
Temp. controller accuracy |
0.1℃ |
|
|
Thermal insulation |
Imported thermal baffle |
|
|
Cooling mode |
Air / Water cooling (water chiller is optional) |
|
|
Heating area |
300×300mm(M×N) |
400×400mm(M×N) |
|
Main unit dimension |
380×350×600mm |
500×480×650mm (K×P×H) |
|
Overall dimension |
700×400×600mm |
850×480×650mm(L×W×H) |
|
Power |
3000W |
6000W |
|
Voltage |
220V, 50/60Hz |
|
|

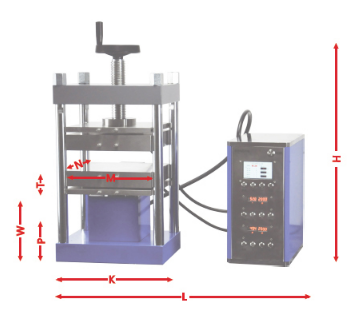

Diagram of hydraulic press |
 |
|
