Summary
Ultrasonic homogenizers are multi-function and multi-purpose instruments that utilize intense high frequency sound to induce cavitation in liquid. As the cavitation bubbles collapse, high shearing energies disrupt animal and plant tissue, and lyse yeast, bacteria and spores. The ultrasonicator can also be used for non-biological applications such as emulsification, nanoparticle dispersion, intense washing or acceleration of chemical reactions (sonochemistry).
Features
- Novel design, Complete-function, Reliable ability
- Large LCD digital display, Fully microprocessor controlled and completely programmable
- Auto-tuning for convenience of use and optimal processing efficiency
- Temperature indicator and controller
- 99h total working time controller, 1s – 99h, count-down time display
- Automatic amplitude compensation
- Power-emitted display for accuracy and repeatability, Variable power output
- Integrated Sound Abating Chamber to reduce cavitational sound emitted during processing
Common applications
Mixing, blending, emulsifying, and homogenizing solutions
Reducing particle size of suspensions
Dispersing suspensions
Disrupting cells
Catalyzing chemical reactions
Technical parameters
Frequency range: 20KHz (frequency is auto-tracking)
Output power: 900W (0%-100% continuous adjustable)
Total working timer: 1s – 99 hours with pause function
Ultrasonic output impulse: Ultrasonic on timer:1s – 99 min
Ultrasonic off timer: 1s – 99 min
Duty ratio: 0%-100%
Diameter of ultrasonic probe: φ13mm ( φ3, 6, 8, 16mm optional, if you need, please contact us)
Sample processing volume:20ml – 1000ml
Working environment and conditions
Environment Temp.: 0 – 40°C
Environment: Indoor (no corrosive gas)
Relative Humidity: ≤85% T=20°C
Power Supply: AC 220, 50Hz or 110V 60Hz
Energy converter Temp.: 0 – 120°C
Sample type: Solutions
Packing list

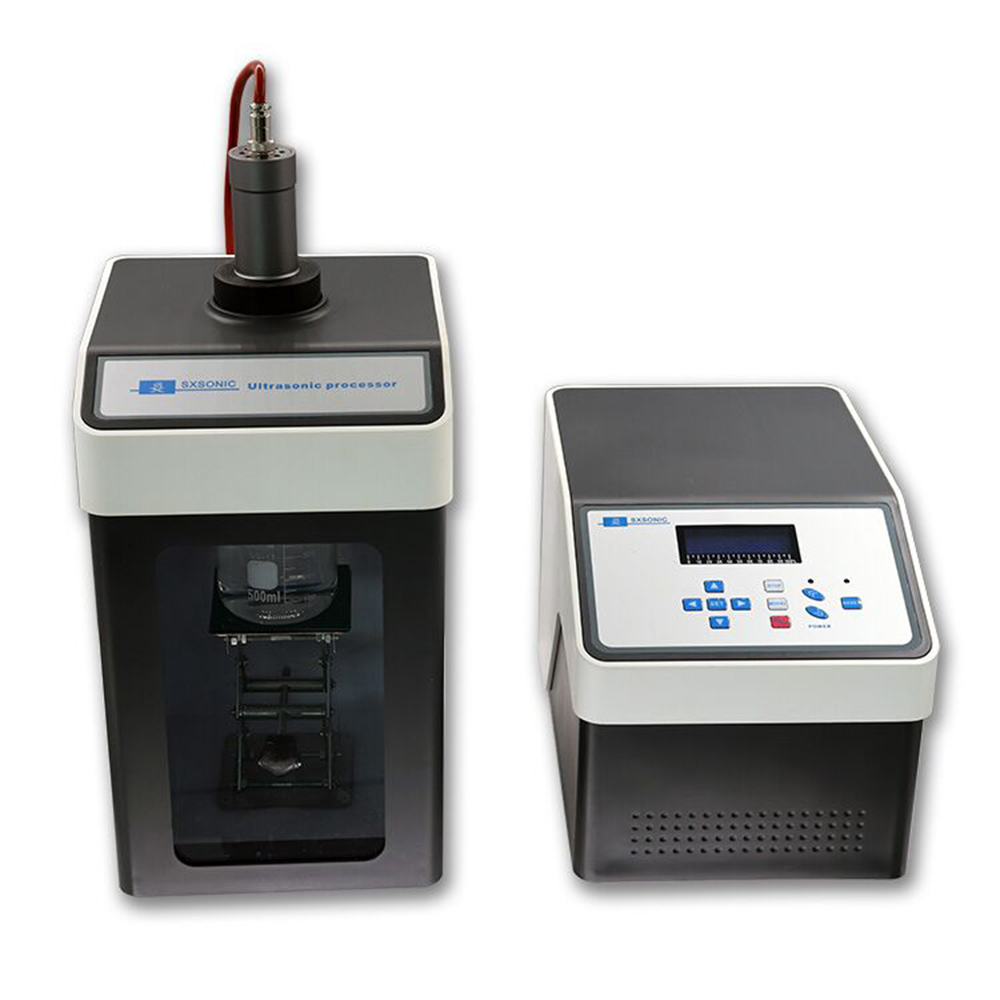

1 * Ultrasonic Homogenizer Machine
1 * Sound Proof Box
1 * Ultrasonic Probe
3 * Fuse
1 * English Manual
1 * Stainless steel lift
The glass flask is not included.
