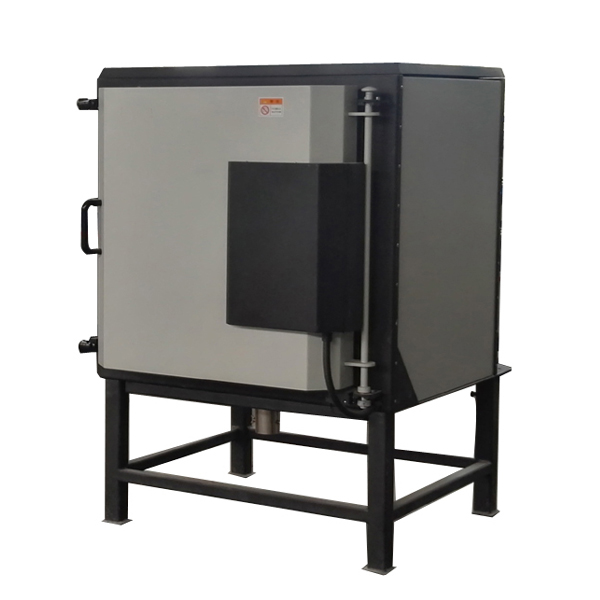

The FXL binder removal and sintering integral box-type furnace is specially designed for the binder removal, pre-sintering and sintering processes of magnetic powdery materials, NFC ferrite magnetic sheets, advanced ceramic materials, electronic elements and devices, the Swedish imported resistance wire is spirally wound on the corundum tube for hearting on five surfaces, and the temperature field uniformity is extremely good.
➢Characteristics:
◆Working temperature: RT～1000℃ and RT～1250℃.
◆Intelligent programmed temperature controller: Can edit, save and transfer multiple programs. No need to reset, simplicity in operation and stability in control.
◆Over-temperature protective function: The power is off automatically when the temperature exceeds the permissible set values.
◆Safety protection: The power is off automatically when the furnace body leaks current.
◆Power is off when the door is opened, and the safety is high.
◆Five-surface heating, extremely good temperature field uniformity, good consistency, good repetition, and convenience in change.
◆The adjustable fresh air inlet is pre-reserved at the bottom, and the waste gas exhaust device is pre-reserved on the top.
◆Silicon carbide setter plate, good bearing capacity, mechanical impact resistance.
➢Extra Options
◆Touch screen remote monitoring, temperature recorder, auxiliary fan, electrical binder removal port.
➢ Technical Parameters
Model
Max Temp.
Volume
Chamber size
(W*H*D)
Heating Method
Thermo-
couple
Power
FXL-15/11
1100℃
15L
250*250*250mm
five-Side heating
K
9KW
FXL-42/11
1100℃
42L
300*350*400mm
12KW
FXL-60/11
1100℃
60L
400*400*400mm
12KW
FXL-120/11
1100℃
120L
400*600*500mm
18KW
FXL-125/11
1100℃
125L
500*500*500mm
21KW
FXL-200/11
1100℃
200L
500*720*530mm
27KW
FXL-300/11
1100℃
300L
560*780*700mm
45KW
FXL-700/11
1100℃
700L
750*1100*820mm
60KW
FXL-15/13
1300℃
15L
250*250*250mm
Five-side heating
S
9.0KW
FXL-42/13
1300℃
42L
300*350*400mm
12KW
FXL-60/13
1300℃
60L
400*400*400mm
12KW
FXL-120/13
1300℃
120L
400*600*500mm
18KW
FXL-125/13
1300℃
125L
500*500*500mm
21KW
FXL-200/13
1300℃
200L
500*720*530mm
27KW
FXL-300/13
1300℃
300L
560*780*700mm
45KW
FXL-700/13
1300℃
700L
750*1100*820mm
60KW
Voltage
380V, 50/60Hz
Heating element
Kanthel Resistance wire
Warranty
1 year
Notes: Please indicate when placing the order if corrosive gas and special volatile are involved, and other hearth sizes can be customized according to the clients’ process requirements.
