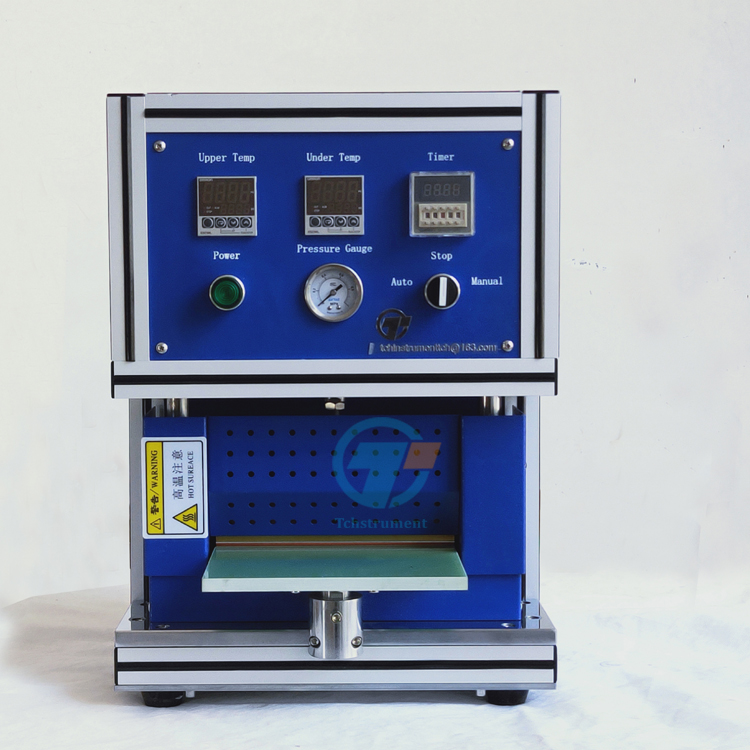

This is a compact heating sealer for sealing aluminum-laminated films during pouch cell case preparation. It is used for sealing the side and top of the pouch cell with the tab before injecting electrolyte.
Specification
|
Model |
TCH-MSK-140 |
|
Power Supply |
220V 50/60Hz Single Phase |
|
Sealing Length |
200 mm Max. |
|
Sealing Width |
5mm for standard (3 to 10mm optional ) |
|
Power |
500W |
|
Seal Thickness |
60~300um (according to the aluminum-laminated films thickness) |
|
Die Opening |
25mm *(140mm back clearance) |
|
Sealing Temperature |
0 - 250 °C adjustable with controlling accuracy +/-2 °C |
|
Sealing Blade Type |
Soft sealing blade (blade with rubber, good for Al case sealing and case with tab in between) |
|
Heating Timer |
0 - 99 Seconds Adjustable |
|
Warranty |
One Year limited warranty with lifetime support |
