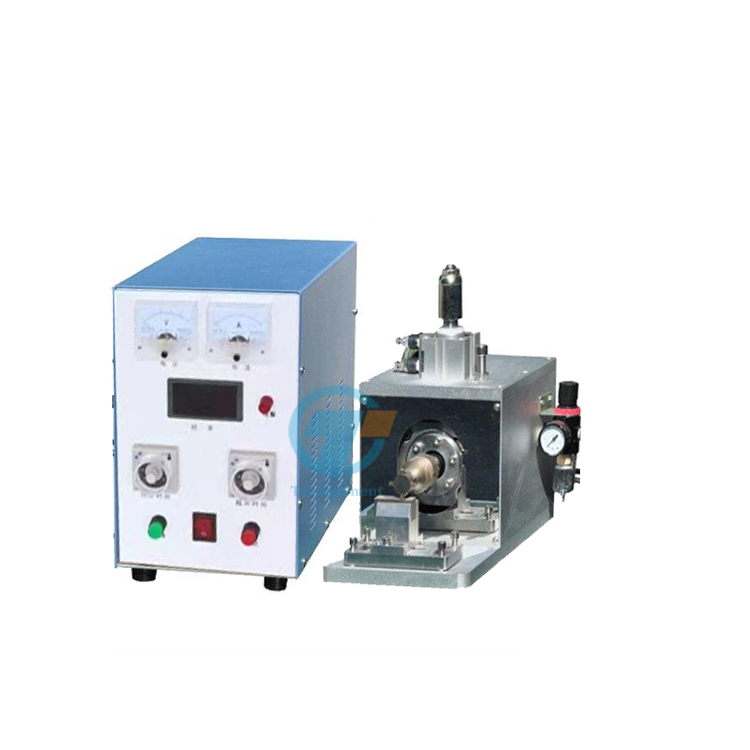

features

        · The solder joint is much cleaner and firmer than conventional welding methods.

        · Low welding temperature ensures no impact on the metal's physical and chemical properties.

          · Great electrical conductivity on the solder joint, the resistance coefficient is close to zero.

         · Pre-treatment to working parts is not needed, and able to weld without welding solder.

       · instant welding, able to finish welding within 0.01 - 2 second.

Input Voltage

 220VAC +/-10%, 50/60Hz

Max. Power Consumption

2000W  (Max 20 layers)

Welding Area

4mm(L) x 4mm(W)

Welding Head

One set of the welding head and the base is installed for welding both aluminum & copper current collectors from 1 to 20 layers.

Ultrasonic Frequency

35K Hz

Pneumatic Control (Not included)

        · Air pressure at range 30 -120 psi is required, but not included  for the operation

        · Attention: If a gas cylinder is used instead of air compressor(, a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.

Feedthrough (Argon Version)

        · The regular version can't be used in the argon gas environment (glove box). For operating in the glove box, the KF40 Feedthrough is required. Please select the argon version in the options bar.

Product Dimensions

        · Controller: 408mm(L) x 195mm(W) x 302mm(H)

Warranty

One Year limited warranty with lifetime support
