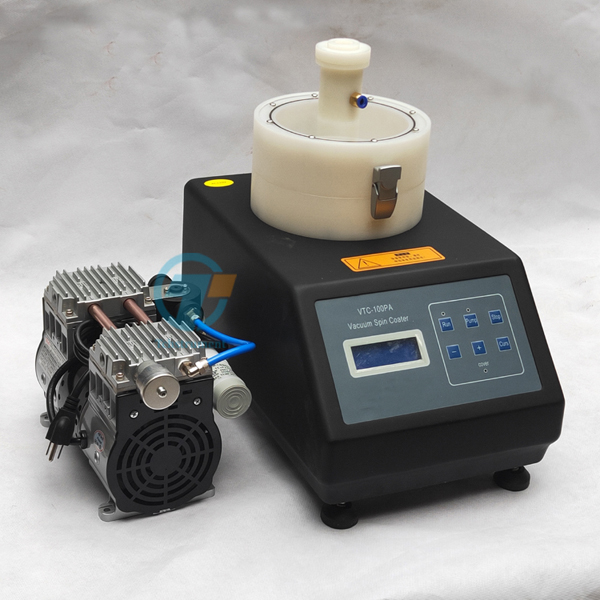

VTC-100PA is CE certified tabletop spin coating device dedicated to spin coat small substrates up to 100 mm diameter at Max. 10000 rpm. The spin head actuator is a precision DC servo motor with accurate speed and acceleration control. The substrate can be held by vacuum (for thinner objects). The device has a user-friendly keyboard and LCD display for programming various parameters up to 12 programs, 6 segments. Spin duration, spin speed, and acceleration can be programmed from the front panel. All components in the device are corrosion protected to make it clean room compatible.
Specification:
Main Features
500 ~ 10000 RPM spinning speed programmable
Accept substrate from 5 mm to 5"
PP chamber for anti-corrosive operation.
One gas inlet port on top of cover which can fill inert gas during coating
One 20ml Plastic Syringe is included
Suitable using Ar gas ( vacuum pump must be outside glovebox)
Safety interlock is integrated into the lid
Vacuum Chuck
Chamber size: 150 mm diameter
2 sets of PP anti-corrosive vacuum chucks with different sizes (O-ring ID Φ44mm, Φ10mm), which can hold substrate from 5 mm to 5" Dia.
Vacuum Pump
One 120L/min Oilless Vacuum Pump is included in the standard package.
For Ar glove box user, Please consider our 24VDC vacuum pump to be used inside a glovebox without feedthrough.
Vaccum grade rubber pipe is included for immediate use.
Duration up to 60 seconds
Acceleration: 100 - 2000 rpm / sec adjustable
Accuracy: < 5%
Digital control panel can store 12 programs and each program has 6 segments programmable for speeds, acceleration, and spin duration (please click picture below-right to see typical program setting)
Input Power
AC 204-240V
1000 W total for oilless pump and spin cater
24VDC high speed motor
6mm diameter gas inlet port allows customers to fill desired gas into the chamber, which can make coating under variable gas flow environment.
Liquid Injection
Standard Package: 20ml plastic syringe with needle
Option 1: Precision Electronic Single Channel Pipette: 20 - 200uL
Option 2: Heatable glass syringe with temp. controller, up to 200C
Product Dimensions
450mm Depth ×280mm W ×340mm H
Net Weight
20 kg
Compliance
CE Certified
Warranty & Compliance
One year limited with lifetime support
Rusting and damage due to improper storage condition or maintenance are not covered by warranty
Warnings
Do not overflush the water bowl/base with any kinds of liquid. Excess liquid will leak into the motor shaft and cause damage. Please use fabric cloth to wipe out the residues remain in the bow/base.
If necessary, turn on the water outlet when flushing the water bowl/base to avoid liquid overflowing during the operation.
Shipping Dimensions
40"(L) x 30"(W) x 30"(H)
Shipping Weight
46 kg (100 lbs)
Programmable Control
Gas Inlet
