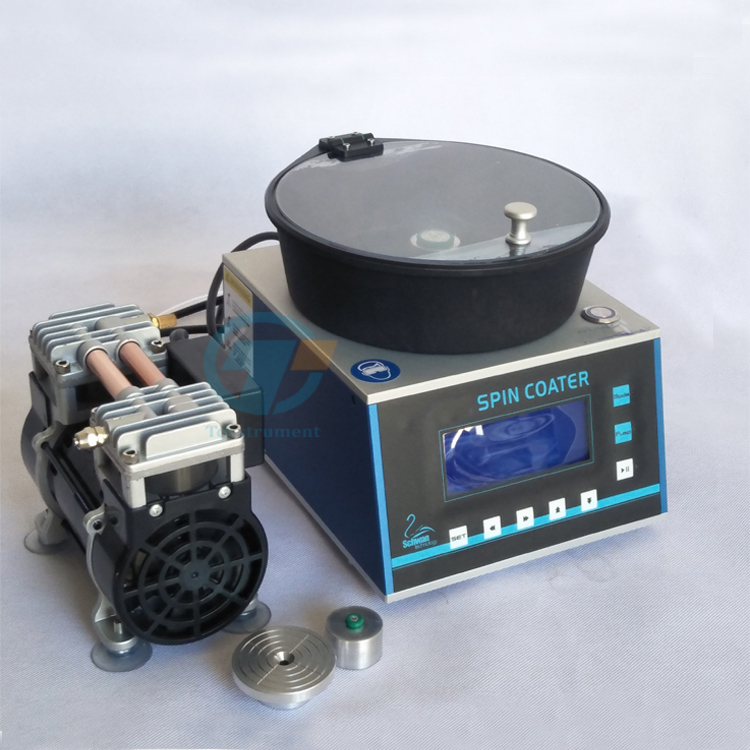

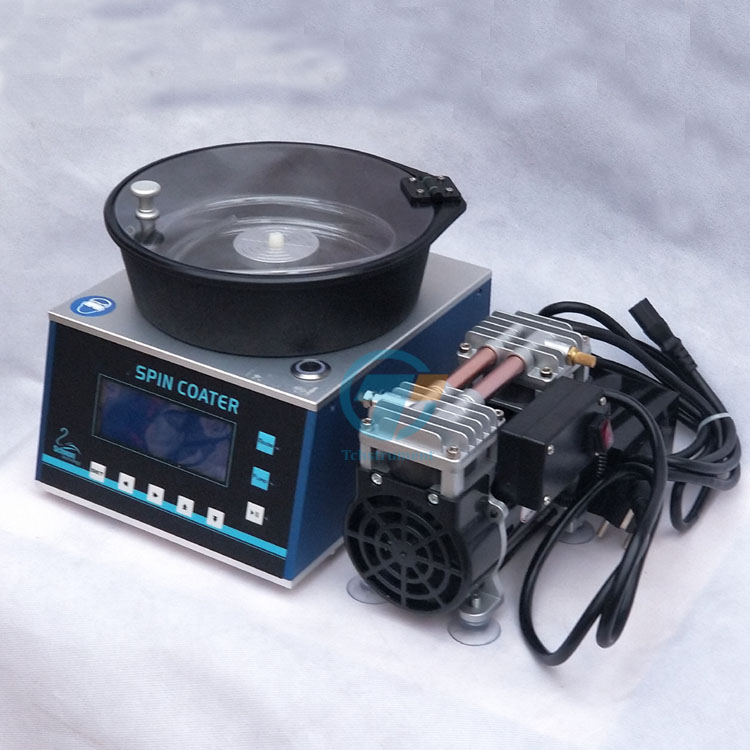

TCH-EZ4 spin coater is a high performance compact spin coater. It is designed for high uniformity thin material coatings. With its small footprint, the spin coater can be installed in a fume hood or a glove box. The upgraded program can store up to five recipes and each recipe could be edited with five spin steps.
Specification:
Model
TCH-EZ4
Max Spin Speed
10,000 RPM
Speed Resolution
1 RPM
Max Spin Time
3,000 S
Time Resolution
1 S
Vacuum chucks size
10mm, 25mm, 55mm ( for standard sizes)
Max. Sample size
4 inches
Max Ramp Rate
10,000 RPM/S
Dimensions
210 mm (W) x 265mm (D) x 215mm (H)
Net weight
6Kg
Power
100-120V，1 Phase，200W（110V）
200-230V，1 Phase，200W（220V）
Required Vacuum
0.06-0.09Mpa，Minimum 15L/Min flow rate
Vacuum Tubing
4mm ID, 6mm OD
Fuse
2 A（installed)
Warranty
2 years
