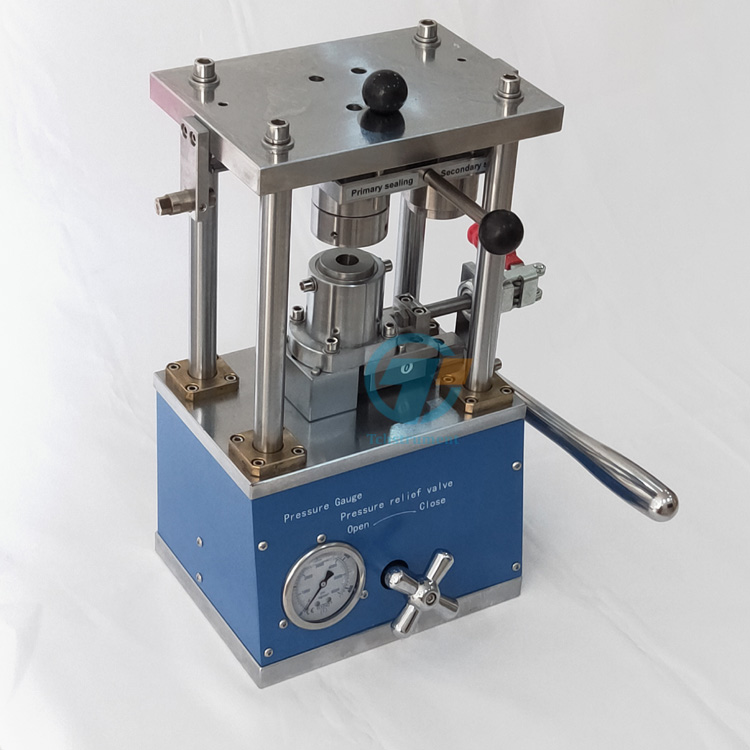

This is a compact hydraulic crimping machine for sealing all types of cylinder cases in battery R&D labs. The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Simple operation with safety protection feature allows customers to master the sealing procedure within 5 minutes.
The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Simple operation with safety protection feature allows customers to master the sealing procedure
Specification:
|
Driving Force |
Manual hydraulic pressing up to 5T |
|
Pressure Gauge |
0-3500 psi (0-250 kg/cm^2) |
|
Body |
Stainless Steel |
|

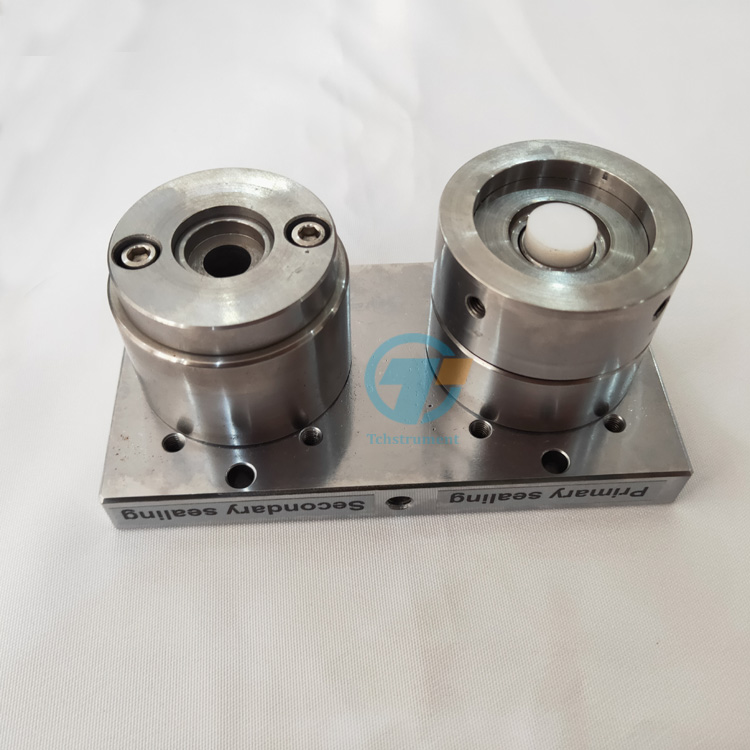

Crimping Dies |
Six standard die for your choice: CR123 /18650 / 26650 / 32650 / AA /AAA |
|
Warranty |
One year limited with lifetime support |
|
Product Dimensions |
330mm(L) x 240mm(W) x 400mm(H) |
|
Application Notes |
Customized die for other cylindrical cell types is available upon request It is necessary to groove the opening end of the cylindrical case by using the grooving machine before sealing the cap Each type of cylinder cell can only be sealed specifically by certain model of equipment. Please select the type of cylinder cell in the Product Options drop box to check the model number and price for the corresponding crimping die of each cylinder cell type |
|
Net Weight |
28kg |
